Laser-Cut 5052 Aluminum

Starting from $29

Used in a wide variety of projects, ranging from submerged natural gas tanks to simple rivets, our 5052 h32 aluminum has become essential in the metal-working industry. It’s also a favorite of our customers.

We source this high-demand metal through trustworthy suppliers with verifiable industry credentials so you don’t have to worry about it. You’ll know that our 5052 aluminum sheets are ready to be transformed into your greatest ideas.

We want to get your 5052 designs made on time, on budget, and at quality standards. Because that’s what we like to do.

Lightweight
Rust Free
Good Machinability

5052 Aluminum is strong, inexpensive, and lightweight

Whether you’re welding, machining, or bending, 5052 is going to be the go-to material for your first-run prototypes and for those projects that need excellent elemental resistance. It’s also exceptionally lightweight, making it perfect for projects where overall load is a concern.

Boasting high relative ultimate strength (and fatigue strength), 5052 aluminum has a dizzying number of practical usages. And on the subject of strength, it’s worth noting that this metal is non-heat treatable, which means that it is cold-worked to achieve its moderate-to-high strength properties. Don’t worry, though, it’s actually the strongest non-heat-treatable plate on the market, so you’re in the right place.

Need something custom? Send us an email at support@sendcutsend.com

Available Thicknesses

In Deviation Gauge MM Process
.040″ +/- .004″ 18 1.0 Laser
.063″ +/- .004″ 14 1.6 Laser
.080″ +/- .005″ 12 2.1 Laser
.100″ +/- .006″   2.6 Laser
.125″ +/- .006″ 8 3.1 Laser
.187″ +/- .009″   4.8 Laser
.250″ +/- .015″   6.3 Laser
.375″ +/- .015″   9.6 Laser
.500″ +/- .015″   12.3 Laser

Common Uses

  • Rivets
  • Hinges
  • Fan Blades
  • Signage
  • Fences
  • Marine applications
  • Panels
  • Heat Exchangers
  • And so much more

FAQs

Does it bend?
Yes

Can you tap it?
Yes, on thicknesses greater than .063″

Can this be deburred?
Yes

How big can I make a part in this?
47” x 60”

Will it rust?
No, and it is corrosion-resistant

Minimum Hole Size

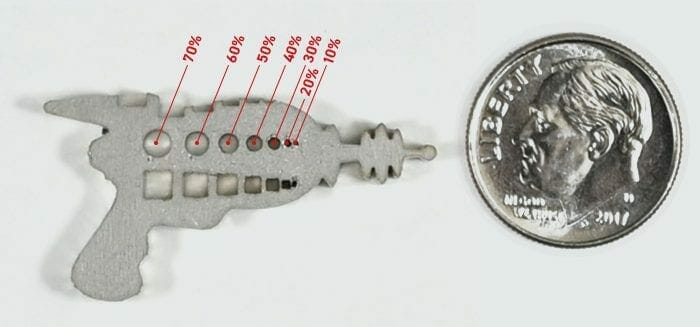

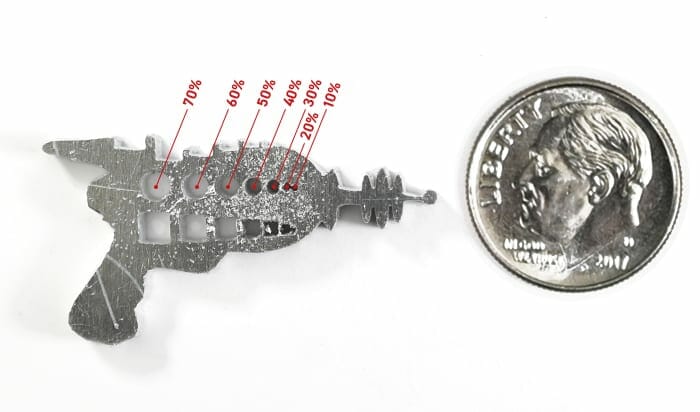

To ensure the best quality for your parts, we recommend no less than 50% material thickness for all holes. See the images below for more detail. The largest hole is 70% material thickness. Each hole decresases in size by 10%.

.500″ 5052 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.500" primary face

.500" primary face

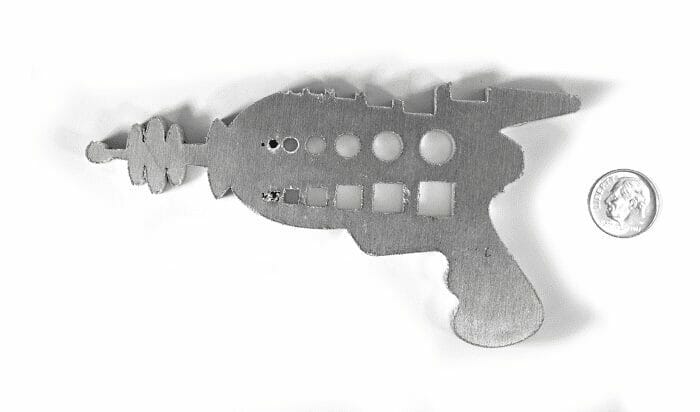

.500" back side

.500" back side

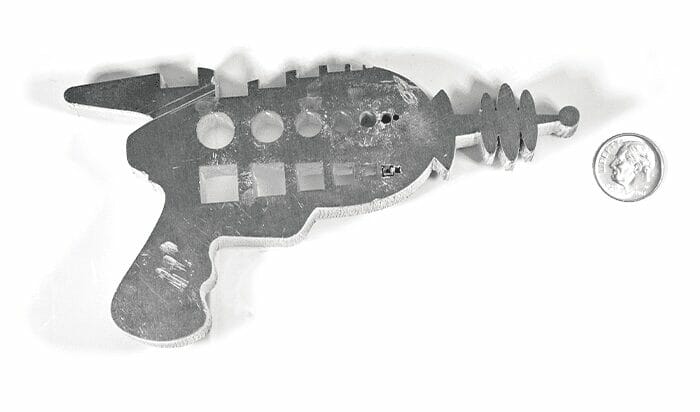

.500" front, angle

.500" front, angle

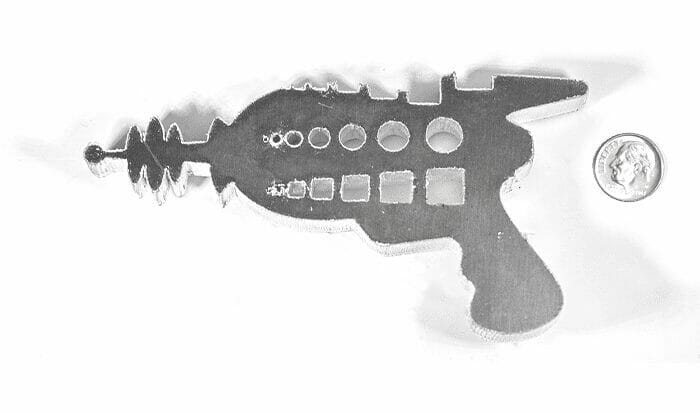

.500" back, angle

.500" back, angle

.375″ 5052 Aluminum



Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.375" primary face

.375" primary face

.375" back side

.375" back side

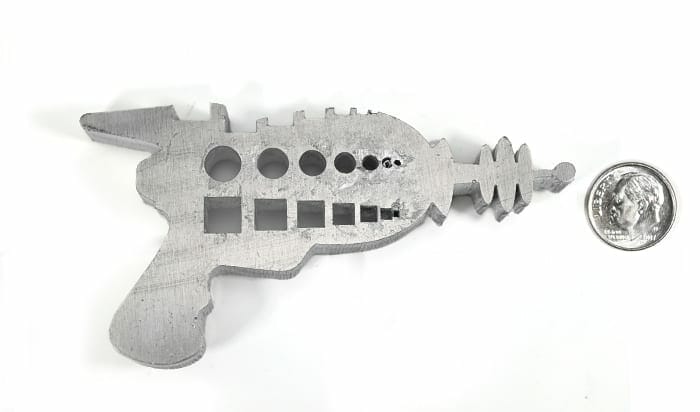

.375" front, angle

.375" front, angle

.250″ 5052 Aluminum



Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.250" primary face

.250" primary face

.250" back side

.250" back side

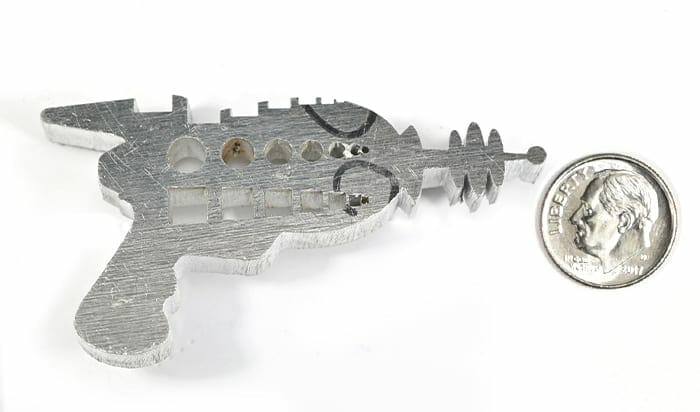

.250" front, angle

.250" front, angle

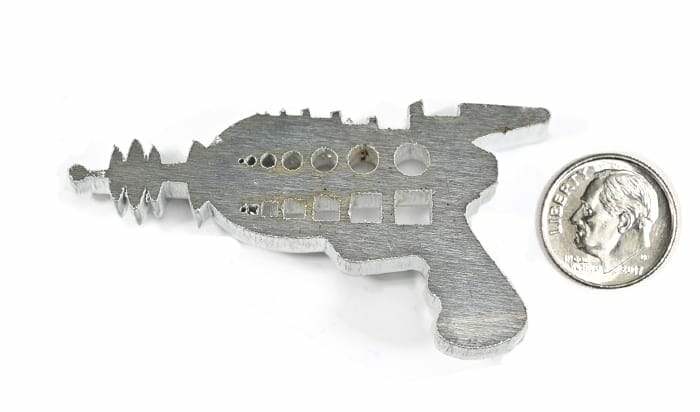

.250" back, angle

.250" back, angle

.187″ 5052 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.120" primary face

.120" primary face

.120" back side

.120" back side

.120" front, angle

.120" front, angle

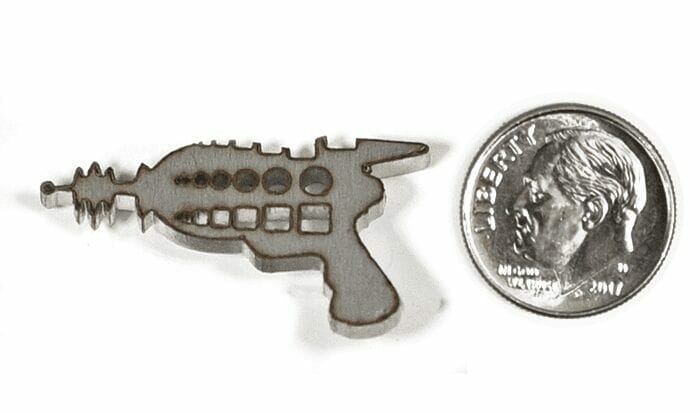

.120" back, angle

.120" back, angle

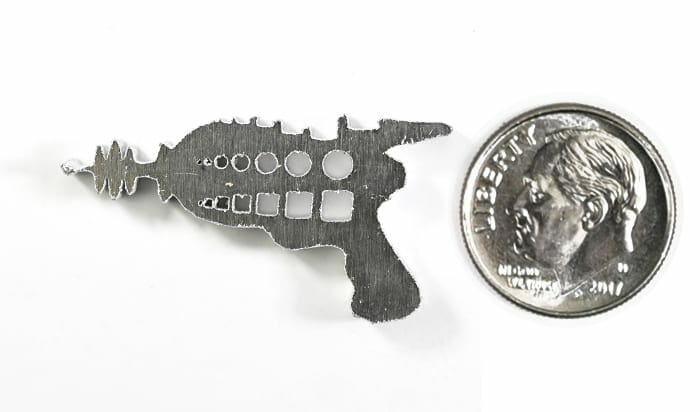

.120″ 5052 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.120" primary face

.120" primary face

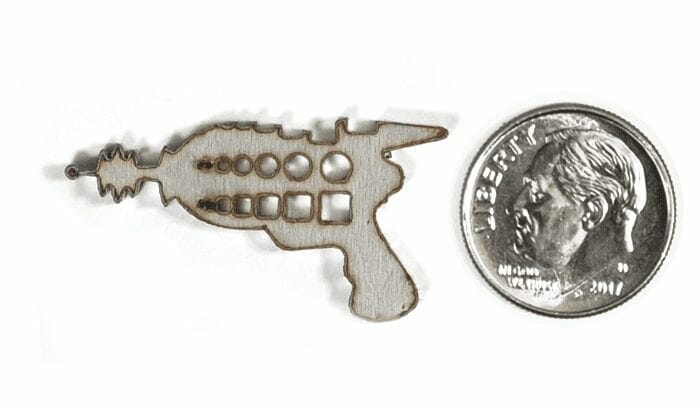

.120" back side

.120" back side

Material Quality

We use the highest quality raw materials available, sourced from trusted vendors. Material certifications (PDF) are available below.

5052 Aluminum .040″
5052 Aluminun .063″
5052 Aluminum .080″
5052 Aluminum .100″
5052 Aluminum .125″
5052 Aluminum .190″
5052 Aluminum .250″
5052 Aluminum .375″
5052 Aluminum .500″
