Etching and Engraving
We now offer etching/engraving services on mild steel, stainless, copper, brass, aluminum, and titanium. We only offer this service through a custom quote.
We've included everything you need to know to get started etching and engraving. If you have questions, please contact us.
Single-Line vs Filled-Area

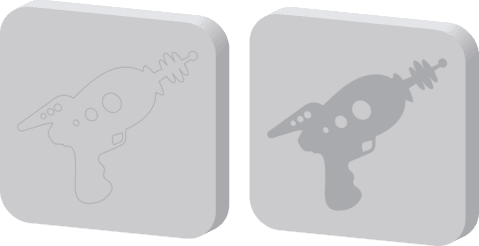

We offer filled-area etching and single-line etching and engraving. These are two different methods done on different machines.
We only accept vector files for etching and engraving. We currently accept AI, and .eps for filled engraving. SVG files are sometimes acceptable if scale and accuracy isn’t critical.
If your design doesn't have any fill (outlines only), a dxf or dwg file is acceptable.
Only have a raster file?

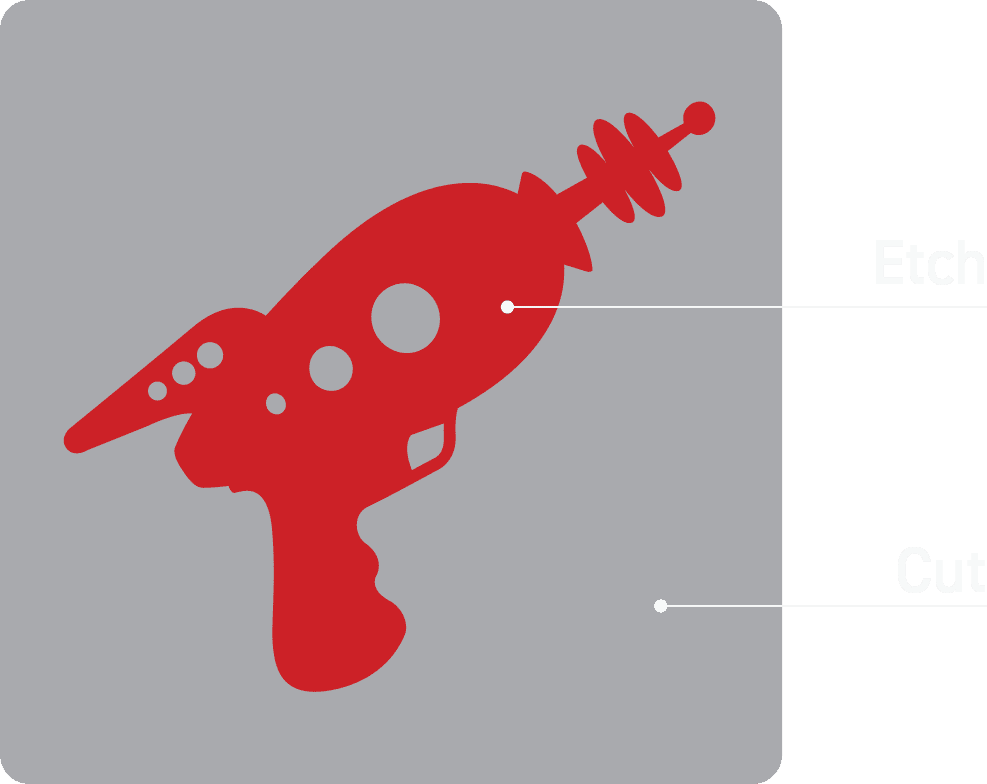

Define what areas are to be etched by using a different color than you do for the cut areas. In the example above, the gray area defines what is to be cut and the red area defines what is to be etched.

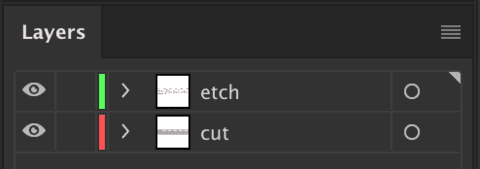

If your software allows it, place areas to be engraved on a separate layer from areas to be cut.

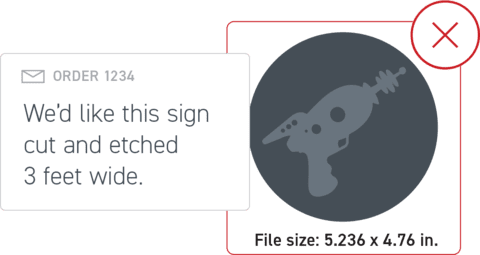

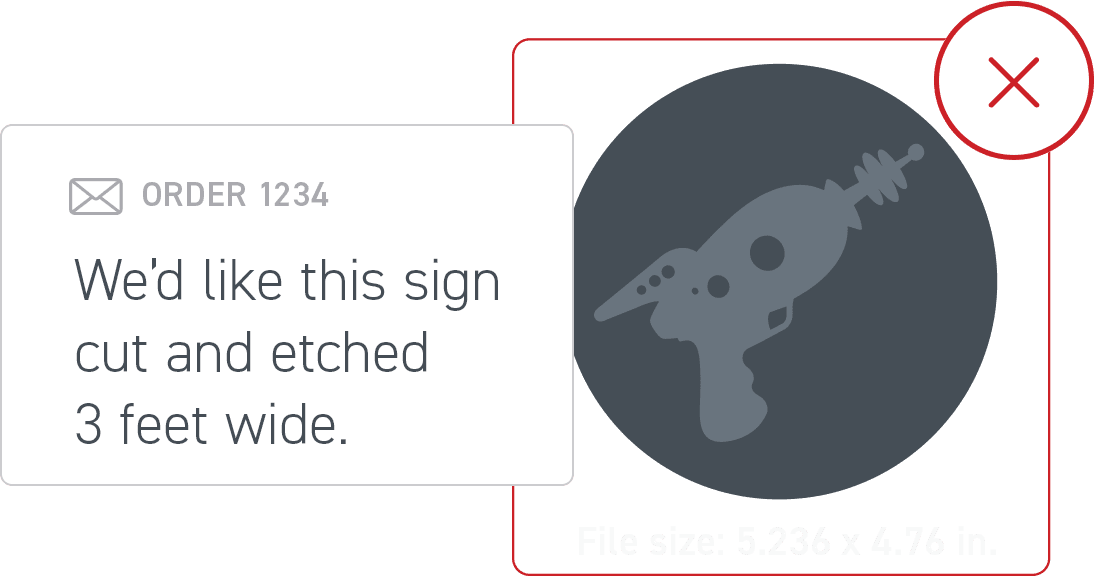

Make sure your art is scaled 1:1, in inches. In other words, your art should be sent to us at the exact size you want it cut and etched.
We'll help you every step of the way in setting up your parts for engraving. Follow the guidelines below to ensure your file is ready to go.
For etching with filled areas and intricate designs, the maximum part size is 24"x24” (all metals)For simple outline-only etching in mild and stainless steel, maximum part size is 47"x119”
Spacing and Bleed

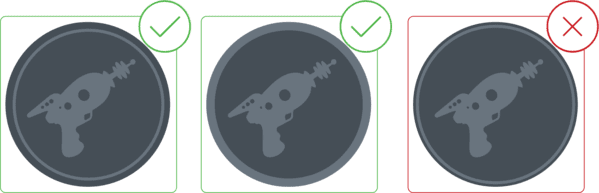

Keep etching at least .125" away from all perimeters, unless you intend for it to bleed off the edges.Also, allow wiggle-room. Design so that your cut and etch can have up to .020” of misalignment.
Things to Note
Etching is created with heat. We change the color of the base metal using precise pulses of heat from the laser, therefore the “depth” of the etching is minimal, perhaps .001” of an inch. We can “deep etch” or laser-engrave too, which is a more time consuming process. Depending on the material, we can achieve .005” - .015” of depth. Deep etching is available on materials .125” thick or greater.
Heat is generated in large filled areas, so thin metals will tend to warp. If you have a lot of “fill” use materials .125” or thicker.
