Our laser cut 10/20 sheet cork is ideal for high compression applications, specifically in gaskets and pressured seals. With many functional and decorative applications, cork is also one of SendCutSend’s more sustainable and environmentally friendly materials.
Our gasket grade sheet cork is manufactured with one clear goal in mind: creating a seal that you can trust. Rubber-bonded with oil, solvent, and petrol resistances, you can trust your cork gaskets, seals, and panels to be leak-free and durable. It even seals well at low flange pressures and high temperatures.

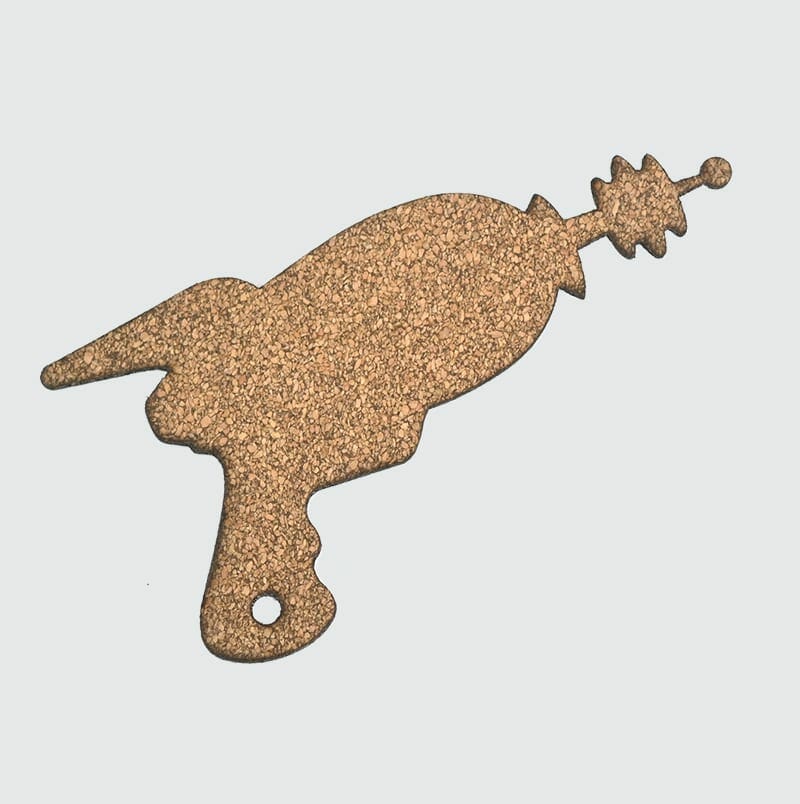

In addition to its many automotive, plumbing, and machining applications, sheet cork can also be used in decorative and aesthetic functional projects. From laser cut cork bulletin boards to coasters to home organization tools, sheet cork deserves a place in your next project.
We source this high-demand metal through trustworthy suppliers with verifiable industry credentials so you don’t have to worry about it. You’ll know that our 5052 aluminum sheets are ready to be transformed into your greatest ideas.
Material certifications (PDF) are available below.
5052 Aluminum .040″
5052 Aluminun .063″
5052 Aluminum .080″
5052 Aluminum .100″
5052 Aluminum .125″
5052 Aluminum .190″
5052 Aluminum .250″
5052 Aluminum .375″
5052 Aluminum .500″
We guarantee awesome quality parts. If you’re not 100% happy, we’ll give you a refund or remake on the spot – no questions, no hassle.
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.094″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
Minimum distance between two of the same hardware | .567″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild, G30
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .345″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
We proudly use hardware by PEM
Stainless Steel: 304, 316
SKU | SO4-440-8 |
Thread Size | 440 |
Hole size in sheet (+0.003/-.0.000) | .166″ |
Minimum sheet thickness | 0.04″ |
Maximum sheet thickness | .125″ |
Fastener material | 400 Stainless Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware. | .313″ |
Recommended panel material | Stainless Steel |
Coating type | Passivated |
Length | .250″ |
304 Stainless Steel material ranges | 0.048″-0.125″ |
316 Stainless Steel material ranges | 0.060″-0.125″ |
