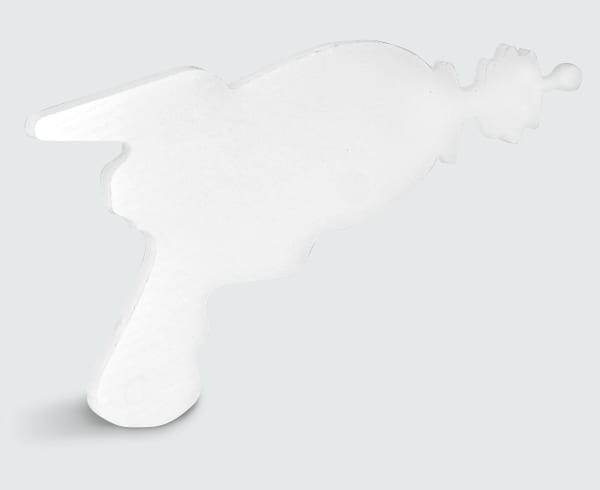

UHMW is a common plastic known for extreme durability, versatility, and cost-effectiveness. You can also count on UHMW parts to be reliably abrasion, impact, and chemical resistant. Order your custom CNC machined UHMW parts today in a matter of minutes.
Our Ultra High Molecular Weight Polyethylene, or UHMW for short, was crafted as a unique solution for projects that needed durability, low friction, and chemical resistance. That means it’s used most often in wear applications that need a longer lifespan.
UHMW is self-lubricating, which ensures smooth and noiseless operations. Known for its extremely high molecular weight, it features an unsurpassed combination of slickness, toughness, and impact resistance.
UHMW is also easy to machine with common woodworking tools, one of the contributing factors to its cost-effectiveness. The truly surprising thing about parts made from UHMW is that they often outperform metal parts in specific applications.
As with other plastics like HDPE, UHMW is an excellent fit for marine construction applications for things like dock fender pads, pile guards, and anti-skid walkways. Similarly, these two materials tend to replace wood in these scenarios and they do not rot, splinter, or corrode like wood.
We source this high-demand metal through trustworthy suppliers with verifiable industry credentials so you don’t have to worry about it. You’ll know that our 5052 aluminum sheets are ready to be transformed into your greatest ideas.
Material certifications (PDF) are available below.
5052 Aluminum .040″
5052 Aluminun .063″
5052 Aluminum .080″
5052 Aluminum .100″
5052 Aluminum .125″
5052 Aluminum .190″
5052 Aluminum .250″
5052 Aluminum .375″
5052 Aluminum .500″
We guarantee awesome quality parts. If you’re not 100% happy, we’ll give you a refund or remake on the spot – no questions, no hassle.
These tabs hold your parts in place while being cut to ensure the best accuracy possible. Click below to learn what to expect and how to best design with these tabs in mind.
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.094″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
Minimum distance between two of the same hardware | .567″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild, G30
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .345″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
We proudly use hardware by PEM
Stainless Steel: 304, 316
SKU | SO4-440-8 |
Thread Size | 440 |
Hole size in sheet (+0.003/-.0.000) | .166″ |
Minimum sheet thickness | 0.04″ |
Maximum sheet thickness | .125″ |
Fastener material | 400 Stainless Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware. | .313″ |
Recommended panel material | Stainless Steel |
Coating type | Passivated |
Length | .250″ |
304 Stainless Steel material ranges | 0.048″-0.125″ |
316 Stainless Steel material ranges | 0.060″-0.125″ |
