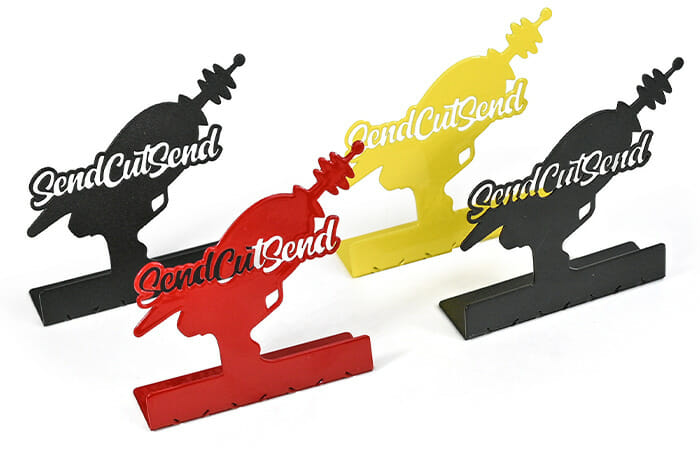

Yes! In addition to cutting, deburring, and bending, we are offering powder coating via our Instant Quote process. For details, check out our powder coating page.
Yes! In addition to cutting, deburring, and bending, we are offering powder coating via our Instant Quote process. For details, check out our powder coating page.
This June, Spend $1,000 or more at checkout, you’ll receive 5% off instantly + a $200 gift card towards a future purchase.
"*" indicates required fields
We proudly use hardware by PEM
| SKU | SO-440-8 |
| Thread Size | 4-40 x .250″ |
| Hole size in sheet (+0.003/-.0.000) | .168″ |
| Minimum sheet thickness | 0.040″ |
| Maximum sheet thickness | .125″ |
| Fastener material | Steel |
| Minimum distance hole C/L to edge | 0.230″ |
| When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .314″ |
| Recommended panel material | Steel/Aluminum |
| Coating type | Zinc |
| Length | .250″ |
| Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
| Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
