We know a project rarely ends at cutting. Whether you’re looking for finishing processes, hole operations, or bending, our full line of services will bring your projects to life.

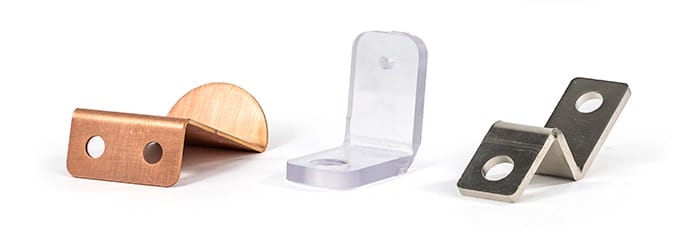

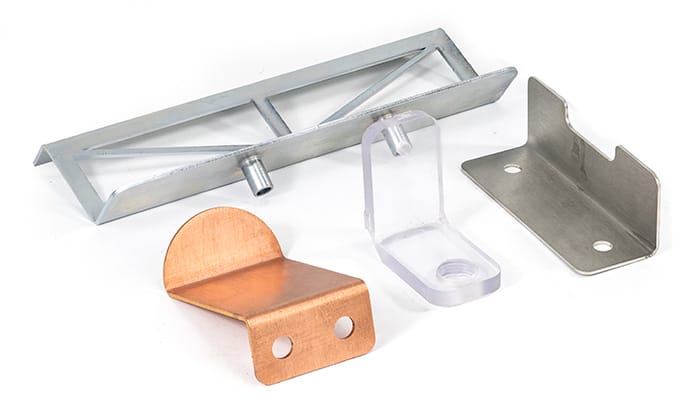

We know your parts are multi-dimensional. We offer bending on a variety of materials – $19 minimum, $3 per bend for metal parts, $6 per bend for polycarbonate parts.
Deburring is included FREE on orders with eligible materials!
Send your sketch or template to our Design Services team. We’ll create your file and send you a cart to purchase your parts. Starting at $49.
Before you send us your first file, check out our guidelines pages to make sure your order is as smooth as possible.
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.94″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .567″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
Aluminum: 5052, 6061, 7075 Steel: Mild, G30
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .345″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
We proudly use hardware by PEM
Stainless Steel: 304, 316
SKU | SO4-440-8 |
Thread Size | 440 |
Hole size in sheet (+0.003/-.0.000) | .166″ |
Minimum sheet thickness | 0.04″ |
Maximum sheet thickness | .125″ |
Fastener material | 400 Stainless Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware. | .345″ |
Recommended panel material | Stainless Steel |
Coating type | Passivated |
Length | .250″ |
304 Stainless Steel material ranges | 0.048″-0.125″ |
316 Stainless Steel material ranges | 0.060″-0.125″ |
