Inches | MM | |
---|---|---|
ABS |
.125, .187, .234 | 3.2, 4.7, 6.0 |

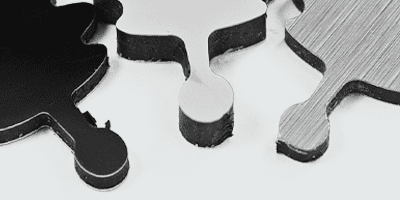

ACM Black |
.125 | 3.2 |
ACM Brushed |
.125 | 3.2 |
ACM White |
.125, .236 | 3.2, 6.0 |

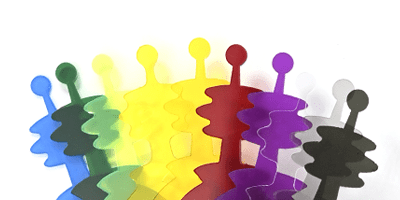

Acrylic | .118, .177, .214″, .236 | 3.0, 4.5, 6.0 |
5052 Aluminum |
.040, .063, .080, .100, .125, .187, .250, .375, .500 | 1.0, 1.6, 2.0, 2.3, 2.5, 3.2, 4.7, 6.4, 9.5, 12.7 |

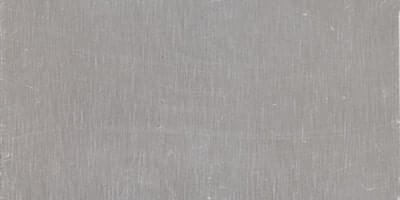

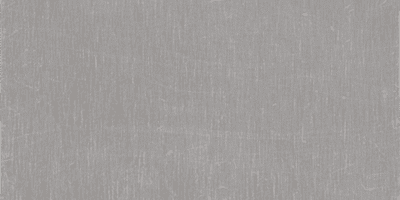

6061 Aluminum |
.040, .063, .080, .125, .250 | 1.0, 1.6, 2.0, 3.2, 4.7, 6.4, 9.5 |
7075 Aluminum | .125, .190, .250 | 3.2, 4.8, 6.4 |

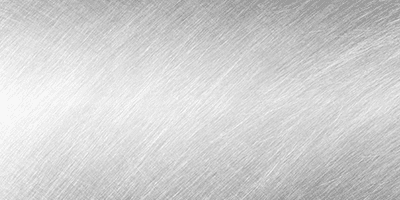

AEB-L | .070, .138, .160 | 1.8, 3.5, 4.0 |

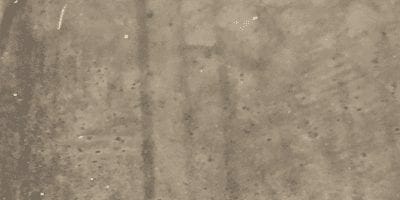

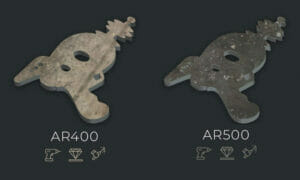

AR400 | .250 | 6.4 |

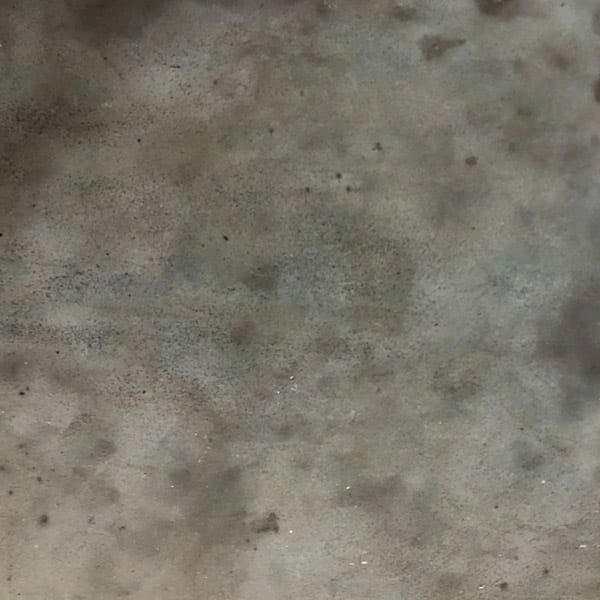

AR500 |
.119, .187, .250, .375, .500 | 3.0, 4.7, 6.4, 9.5, 12.7 |

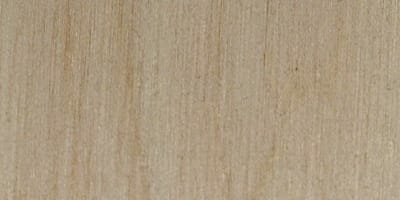

Birch Plywood | .125, .375, .500 | |

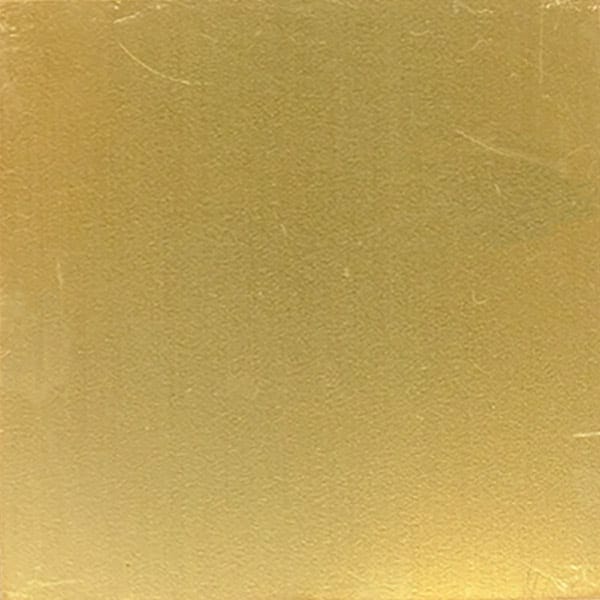

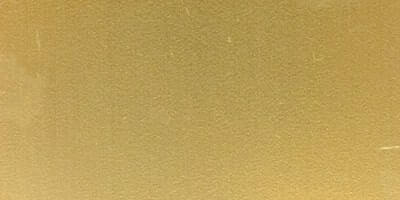

Brass | .040, .063, .125, .187, .250 | 1.0, 1.6, 3.2, 4.7, 6.3 |

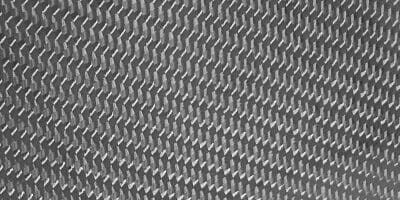

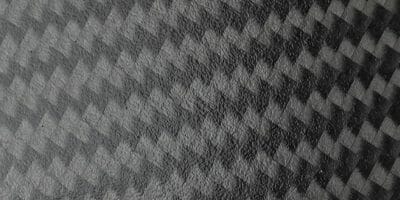

Carbon Fiber |
.040, .063, 0.118 .125 | 1.0, 1.6, 2.0, 3.0, 3.2 |

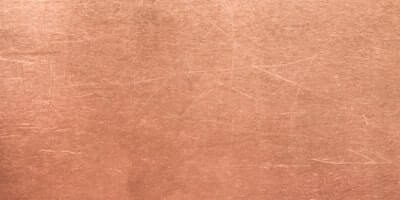

Copper |
.040, .063, .125, .187, .250 | 1.0, 1.6, 3.2, 4.7, 6.4 |

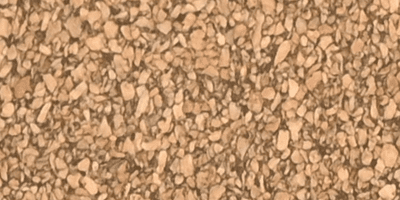

Cork (Gasket Grade) |
.063, .125 | 1.6, 3.2 |

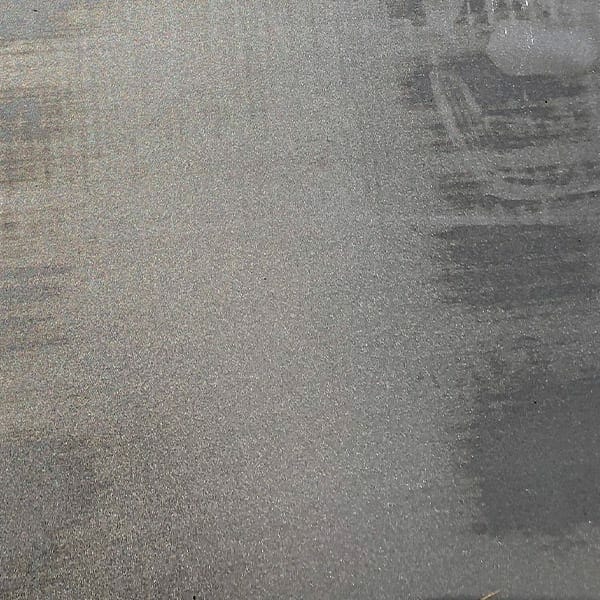

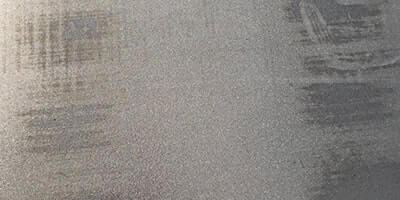

4130 Chromoly |
.050, .063, .125, .190, .250 | 1.27, 1.6, 3.2, 4.8, 6.3 |

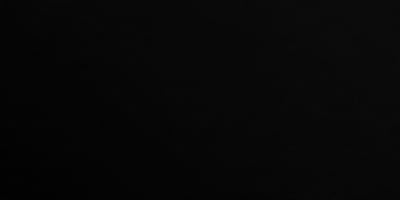

Delrin 150® |
.125, .270 | 3.2, 6.85 |

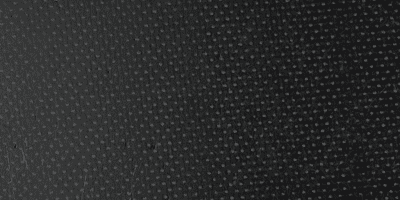

G-10/FR-4 |
.063, .125, .250, .375 | 1.6, 3.2, 6.4, 9.5 |

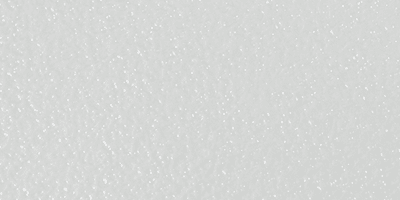

HDPE |
.125, .250, .375 | 3.2, 6.4, 9.5 |

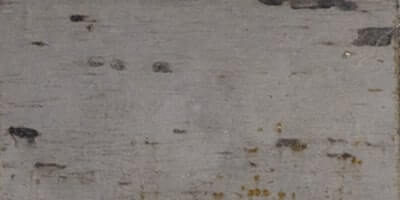

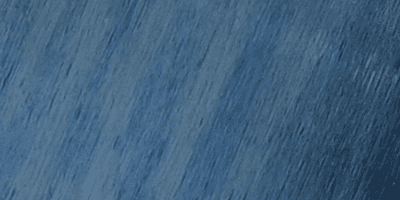

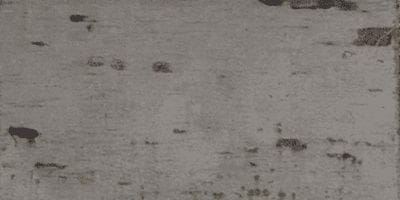

1095 High Carbon Steel |
.125, .185 | 3.2, 4.7 |
LE Phenolic |
.125, .250, .375 | 3.2, 6.4, 9.5 |
MDF |
.125, .250, .375, .500 | 3.2, 6.4, 9.5, 12.7 |

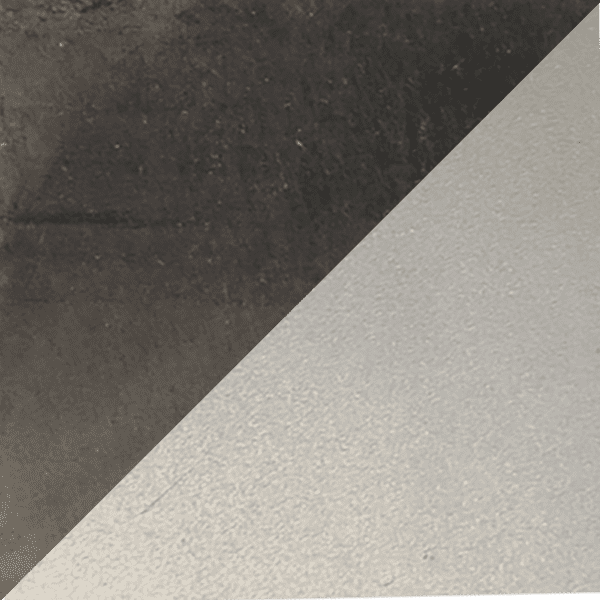

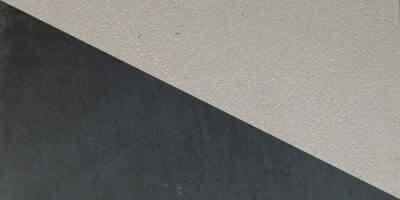

Mild Steel |
.030, .048, .059, .074, .075, .104, .119, .135, .188, .250, .375, .500 | 0.8, 1.2, 1.5, 1.9, 2.6, 3.0, 3.4, 4.8, 6.4, 9.5, 12.7 |

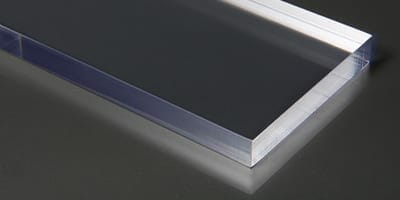

Polycarbonate |
.118, .177, .220 | 3.0, 4.5, 5.6 |

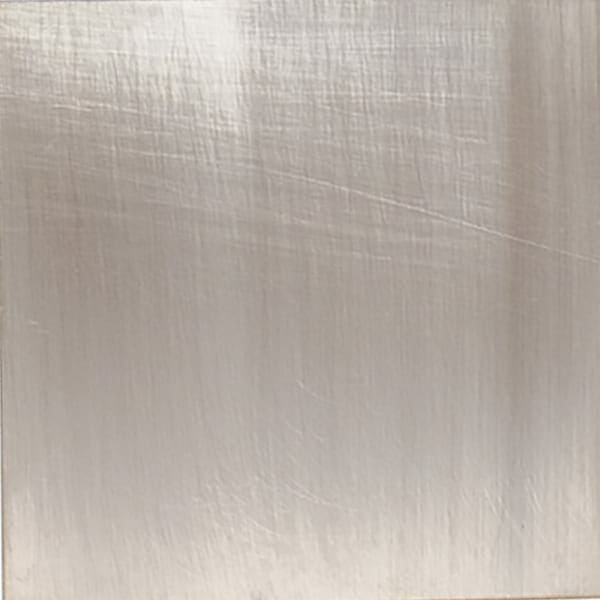

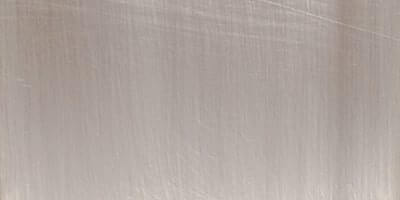

Stainless Steel |
.030, .048, .060, .074, .100, .125, .187, .250, .375, .500 | 0.8, 1.2, 1.5, 1.9, 2.5, 3.2, 4.7, 6.4, 9.5, 12.7 |

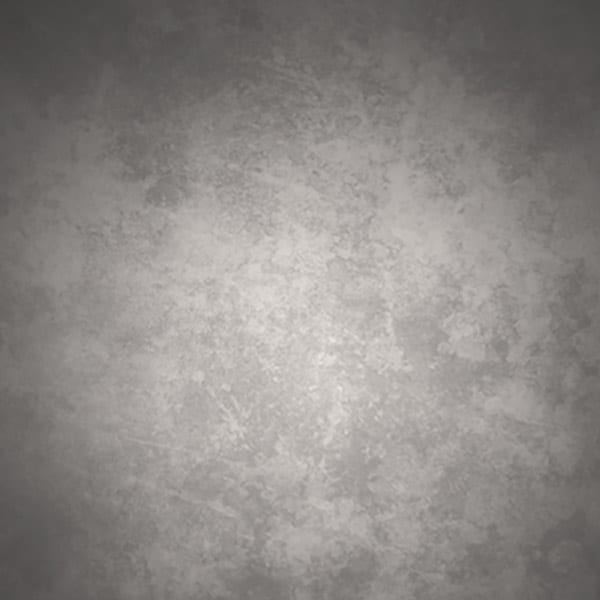

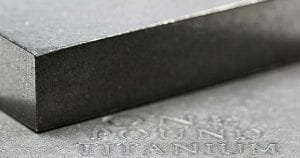

Titanium |
.040, .060, .125, .187, .250 | 1.0, 1.5, 3.2, 4.7 |
UHMW |
.125, .187, .250, .375, .500 | 3.2, 4.7, 6.4, 12.7 |
Click the link below to find the best material for your project.

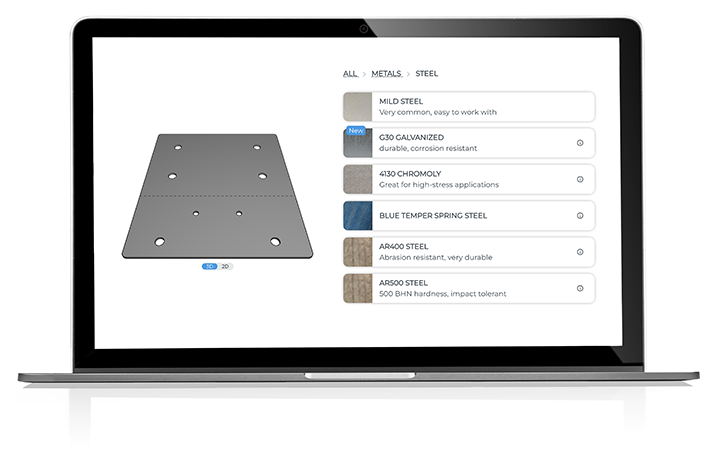

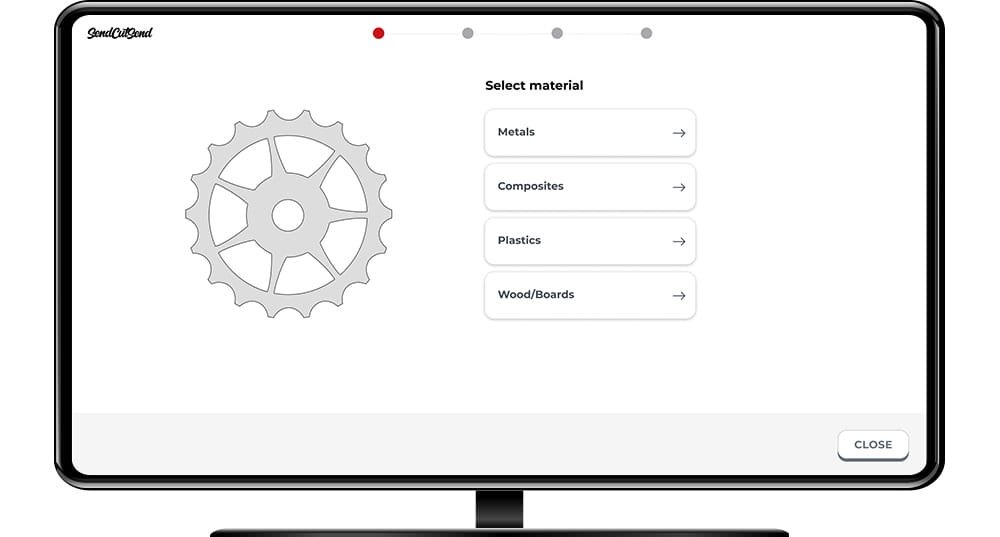

Not sure which material is right for your project? Check out our Material Selection Guide.
Covers all materials and thicknesses
Covers sizing specifications for all our post-processing services.
Tips for reducing design density, which saves you money!
Everything you need to know before you design your first part.
We offer custom laser cutting, waterjet cutting, and CNC routing. We’ll cut your parts with the method best suited for your material.
Add dimension to your projects with our precision CNC bending services.
Quickly and easily add threading to your parts, or allow hardware to sit flush.
Select from our catalog of PEM press-fit hardware to add nuts, studs, and standoffs.
We offer Class II & III anodizing services to add durability and character to your laser cut parts.
Increase rust prevention, wear resistance, and strength with zinc and nickel plating.
Give your laser cut parts a bold, long-lasting finish and protective layer in one of 7 colors
This FREE process removes small imperfections, scratches, and burr left over from the cutting process.
Deburring is included FREE on orders with eligible materials!
Inches | MM | |
---|---|---|
ABS |
.125, .187, .234 | 3.2, 4.7, 6.0 |
ACM Black |
.125 | 3.2 |
ACM Brushed |
.125 | 3.2 |
ACM White |
.125, .236 | 3.2, 6.0 |
Acrylic | .118, .177, .214″, .236 | 3.0, 4.5, 6.0 |
5052 Aluminum |
.040, .063, .080, .100, .125, .187, .250, .375, .500 | 1.0, 1.6, 2.0, 2.3, 2.5, 3.2, 4.7, 6.4, 9.5, 12.7 |
6061 Aluminum |
.040, .063, .080, .125, .250 | 1.0, 1.6, 2.0, 3.2, 4.7, 6.4, 9.5 |
7075 Aluminum | .125, .190, .250 | 3.2, 4.8, 6.4 |
AEB-L | .070, .138, .160 | 1.8, 3.5, 4.0 |
AR400 | .250 | 6.4 |
AR500 |
.119, .187, .250, .375, .500 | 3.0, 4.7, 6.4, 9.5, 12.7 |
Birch Plywood | .125, .375, .500 | |
Brass | .040, .063, .125, .187, .250 | 1.0, 1.6, 3.2, 4.7, 6.3 |
Carbon Fiber |
.040, .063, 0.118 .125 | 1.0, 1.6, 2.0, 3.0, 3.2 |
Copper |
.040, .063, .125, .187, .250 | 1.0, 1.6, 3.2, 4.7, 6.4 |
Cork (Gasket Grade) |
.063, .125 | 1.6, 3.2 |
4130 Chromoly |
.050, .063, .125, .190, .250 | 1.27, 1.6, 3.2, 4.8, 6.3 |
Delrin 150® |
.125, .270 | 3.2, 6.85 |
G-10/FR-4 |
.063, .125, .250, .375 | 1.6, 3.2, 6.4, 9.5 |
HDPE |
.125, .250, .375 | 3.2, 6.4, 9.5 |
1095 High Carbon Steel |
.125, .185 | 3.2, 4.7 |
LE Phenolic |
.125, .250, .375 | 3.2, 6.4, 9.5 |
MDF |
.125, .250, .375, .500 | 3.2, 6.4, 9.5, 12.7 |
Mild Steel |
.030, .048, .059, .074, .075, .104, .119, .135, .188, .250, .375, .500 | 0.8, 1.2, 1.5, 1.9, 2.6, 3.0, 3.4, 4.8, 6.4, 9.5, 12.7 |
Polycarbonate |
.118, .177, .220 | 3.0, 4.5, 5.6 |
Stainless Steel |
.030, .048, .060, .074, .100, .125, .187, .250, .375, .500 | 0.8, 1.2, 1.5, 1.9, 2.5, 3.2, 4.7, 6.4, 9.5, 12.7 |
Titanium |
.040, .060, .125, .187, .250 | 1.0, 1.5, 3.2, 4.7 |
UHMW |
.125, .187, .250, .375, .500 | 3.2, 4.7, 6.4, 12.7 |
Click the link below to find the best material for your project.
No CAD File? No Problem! Send your sketch or template to our Design Services team.
We proudly use hardware by PEM
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.94″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .535″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .314″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
