Will my parts be tapered?

Will there be tapering present on my parts?

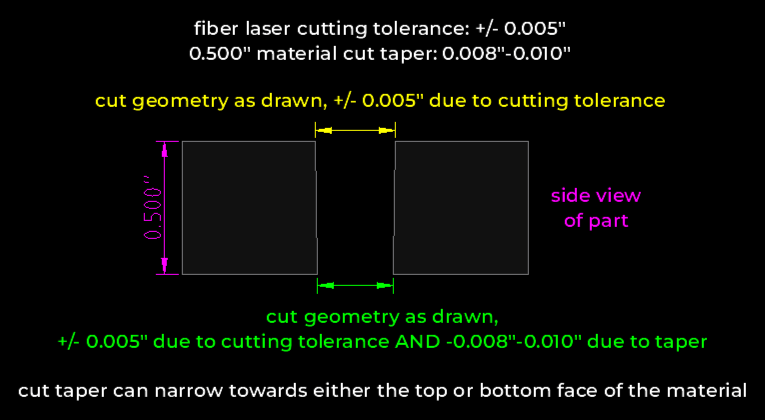

Yes, it is possible your parts thicker than 0.250” will have a slight taper from top to bottom. The thicker the material, the more it will be tapered. SendCutSend’s state-of-the-art laser cutting and waterjet cutting technology is able to reduce the amount of taper during the process, but it cannot be completely eliminated.


Material ThicknessTaper
<.250”.001”-.002”, top to bottom
≥.250”.003”-.005”, top to bottom
≥0.375”0.004”-0.008”, top to bottom
≥0.500”0.008″-0.010″, top to bottom
