Why can’t I select deburring for my part?

Why am I unable to select deburring for my part?

Our deburring services are provided at no cost for all eligible parts. If your part meets our requirements for linear deburring it will be automatically selected at checkout. If deburring is not an option, it could be for a number of reasons:

  • Size: Linear deburring is only available for parts that are at least 3″ in length on their longest axis, and less than 24″ on their shortest axis.
  • Material: Deburring is not available for any carbon steel parts
  • Thickness: We require a minimum thickness of .048″

Refer to our Processing Maximum and Minimum Part Size chart to confirm if your parts are eligible for linear deburring in your chosen material.

If your part's overall flat size is smaller than 1" x 3", you won't be able to select deburring.
Minimum overall flat part size for linear deburring

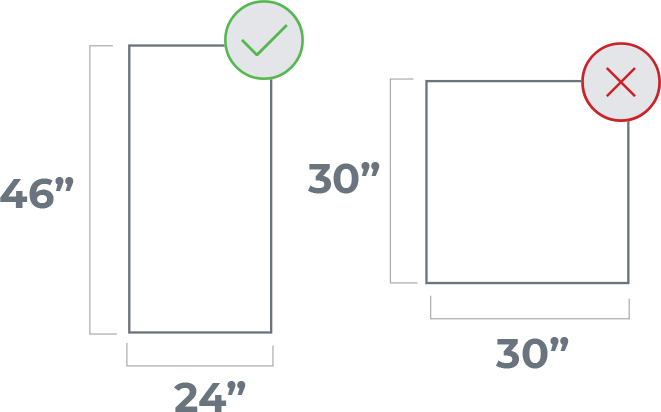

If your part's overall flat size exceeds 46" x 24", you won't be able to select deburring.
Maximum overall flat part size for linear deburring

Start your first SendCutSend project today!

Upload your CAD design or use our parts builder and get a free instant quote on your custom laser cut parts, all delivered to your door in a matter of days.

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Zinc plus Clear Chromate

SKUSO-440-8
Thread Size4-40 x .250″
Hole size in sheet (+0.003/-.0.000).168″
Minimum sheet thickness0.040″
Maximum sheet thickness.125″
Fastener materialSteel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..314″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.250″
Aluminum material ranges (5052, 6061, 7075)0.040″-0.125″
Steel material ranges (CRS, HRPO, HR)0.048″-0.119″
