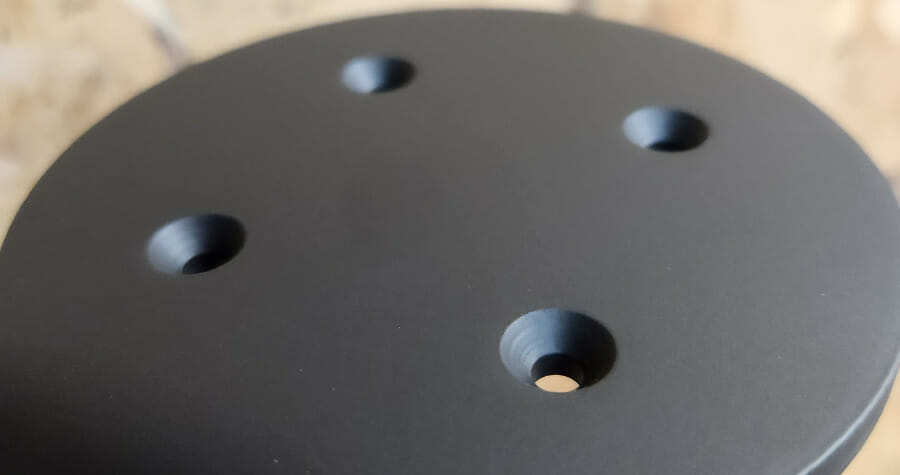

Bending, countersinking, and tapping services are performed before finishing services.

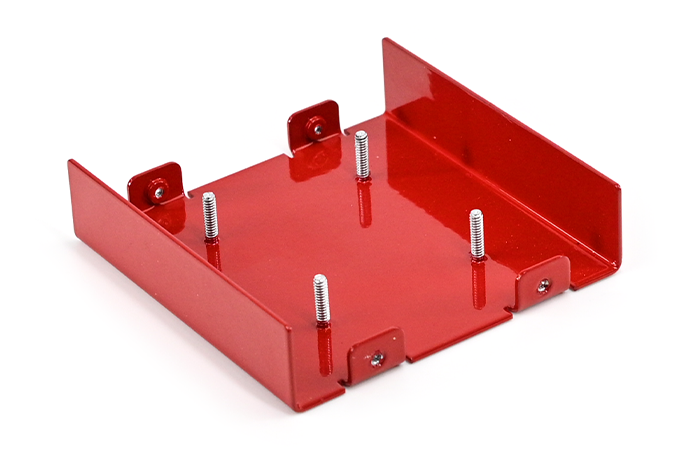

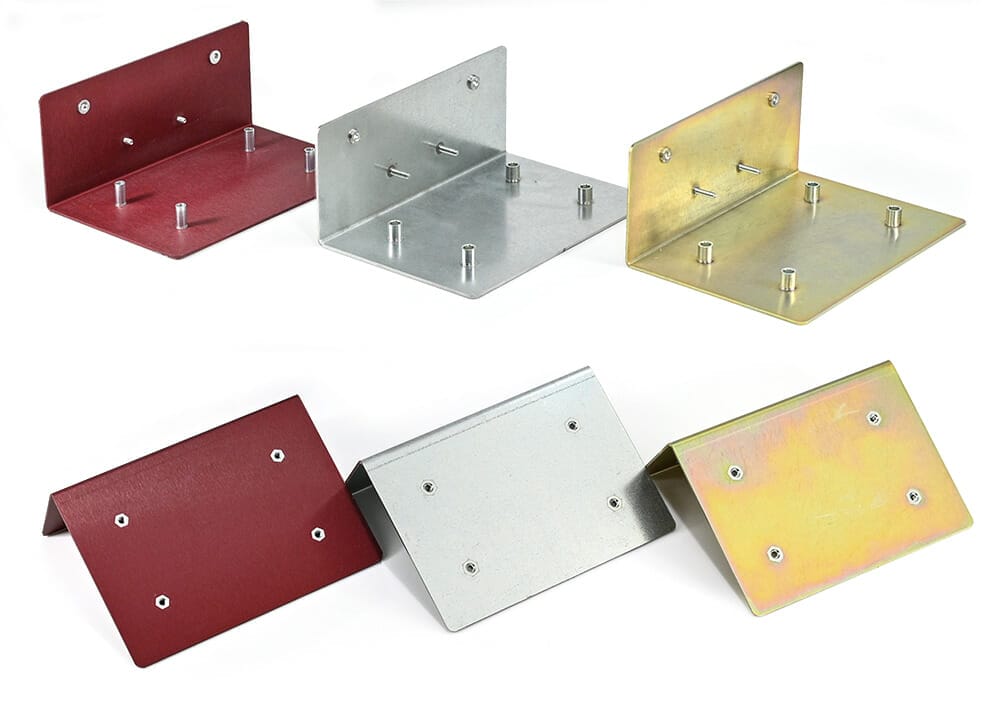

Hardware is installed after anodizing and plating, but before powder coating. Parts with both hardware and powder coating services will have the hardware capped/plugged before being powder coated.
Check out the individual guidelines pages for each service so you’ll know what to expect when you receive your parts!
This June, Spend $1,000 or more at checkout, you’ll receive 5% off instantly + a $200 gift card towards a future purchase.
"*" indicates required fields
We proudly use hardware by PEM
| SKU | SO-440-8 |
| Thread Size | 4-40 x .250″ |
| Hole size in sheet (+0.003/-.0.000) | .168″ |
| Minimum sheet thickness | 0.040″ |
| Maximum sheet thickness | .125″ |
| Fastener material | Steel |
| Minimum distance hole C/L to edge | 0.230″ |
| When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .314″ |
| Recommended panel material | Steel/Aluminum |
| Coating type | Zinc |
| Length | .250″ |
| Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
| Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
