Can I send you a cardboard template?

Can I send you a cardboard template?

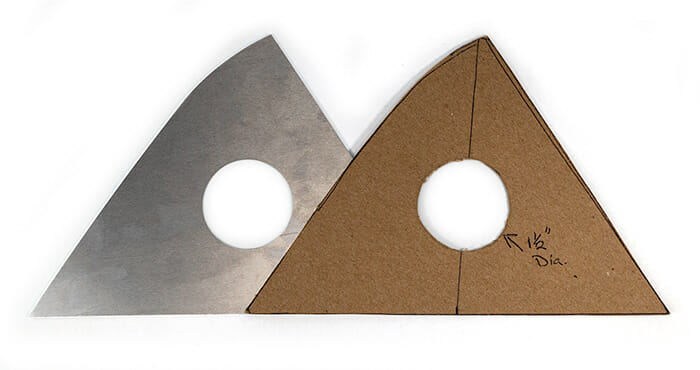

Yes! If you have a cardboard template of your design and need assistance turning it into a CAD file, our design services may be a good fit for you.

Design services start at $49 and allow you to send us your physical template to convert to a CAD file. Our Physical Reversal process uses state-of-the-art technology to make a CAD file from the physical template that you created.

Before you start, read more about our design services to see if it’s a good solution for your needs.

Before sending a physical template to our design services team, be sure to review our Physical Reversal Guidelines.

Start your first SendCutSend project today!

Upload your CAD design or use our parts builder and get a free instant quote on your custom laser cut parts, all delivered to your door in a matter of days.

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild, G30

SKUSO-440-8
Thread Size4-40 x .250″
Hole size in sheet (+0.003/-.0.000).168″
Minimum sheet thickness0.040″
Maximum sheet thickness.125″
Fastener materialSteel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..345″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.250″
Aluminum material ranges (5052, 6061, 7075)0.040″-0.125″
Steel material ranges (CRS, HRPO, HR)0.048″-0.119″

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Passivated

Stainless Steel: 304, 316

SKUSO4-440-8
Thread Size440
Hole size in sheet (+0.003/-.0.000).166″
Minimum sheet thickness0.04″
Maximum sheet thickness.125″
Fastener material400 Stainless Steel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware..345″
Recommended panel materialStainless Steel
Coating typePassivated
Length.250″
304 Stainless Steel material ranges0.048″-0.125″
316 Stainless Steel material ranges0.060″-0.125″
