How to use the Bend tool in Fusion 360?

Using the Bend tool to add bends in Fusion 360 allows you to see how your bent part will look in 3D and check the formed dimensions. Here’s how!

Using the Bend tool to add a bend

1. Create a sheet metal rule if needed

If you haven’t already, create a sheet metal rule in Fusion for the material and thickness you intend your part to be cut from.

2. Draw a 2D sketch with bend lines

Draw a 2D sketch using the flat pattern dimensions advised in our Bending Calculator.

  • Include bend location lines. Each bend line should mark the center of each bend.
  • Bend lines can be solid/continuous since bend line formatting will be handled automatically when you export your file later on.
Sketch your part and include bend lines to indicate the center of each bend.

3. Extrude your sketch

Then, extrude your sketch to the desired material thickness. We recommend using the Flange tool since this will automatically convert the part to sheet metal using the desired sheet metal rule.

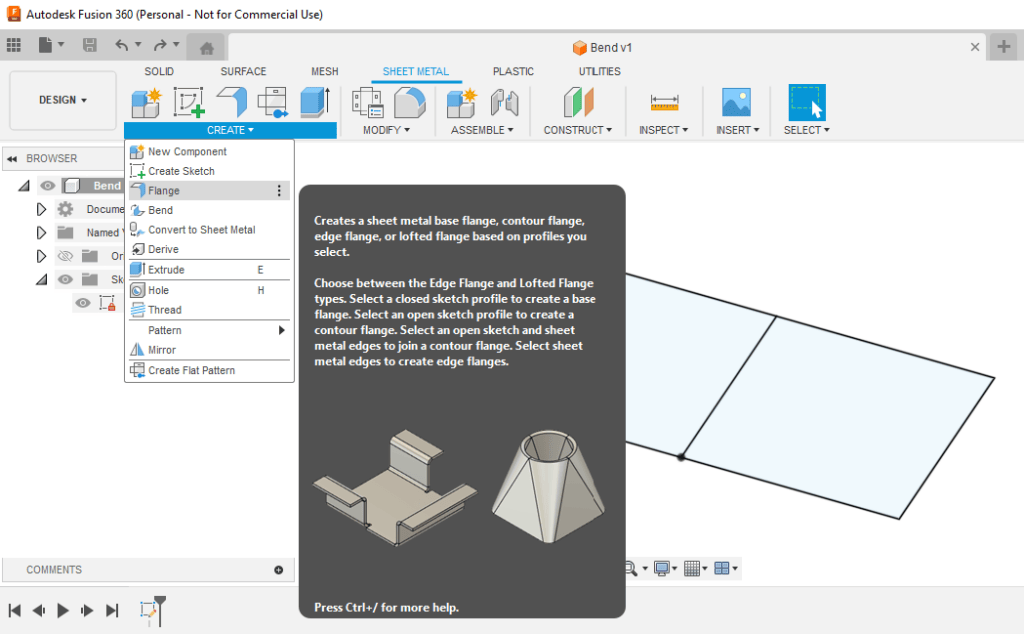

From the Sheet Metal tab, click the CREATE dropdown menu and then select Flange.

Extrude your sketch in Fusion by navigating to the Sheet Metal tab, then clicking the CREATE dropdown menu and selecting the Flange tool

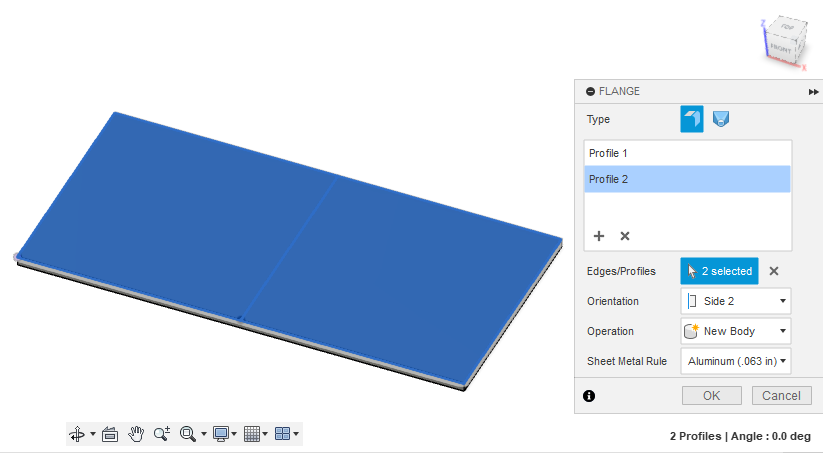

Select all Profiles, set the Orientation to Side 2, and choose the correct Sheet Metal Rule from the dropdown menu. Then click OK.

In the Flange tool, select all Profiles, set the Orientation to Side 2, and choose the correct Sheet Metal Rule from the dropdown menu. Then click OK.

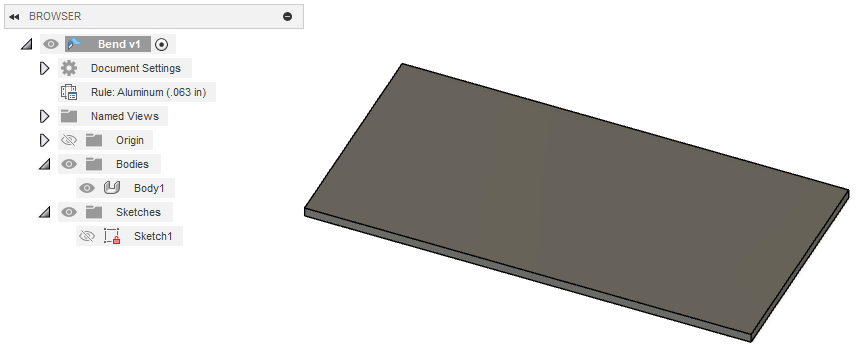

This will create a Body and automatically hide your Sketch.

When you create a sheet metal body with the Flange tool, your sketch will be hidden automatically.

4. Add bends using the Bend tool

Add bends using the Bend tool. With the correct settings, the Bend tool will automatically apply the information from the sheet metal rule when adding the bend to your design. This will ensure that the 3D preview in Fusion will show the formed dimensions you can expect after the part is bent.

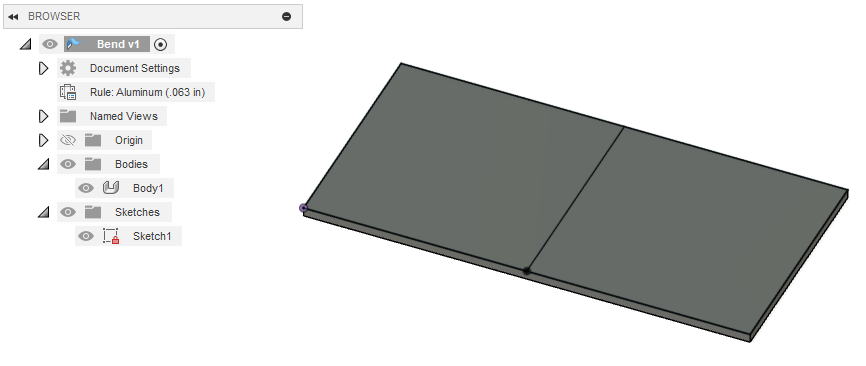

To do this, un-hide your Sketch by clicking the eye icon. This will reveal your bend lines.

Un-hide your sketch to reveal bend lines in your design.

Then access the Bend tool from the CREATE dropdown menu.

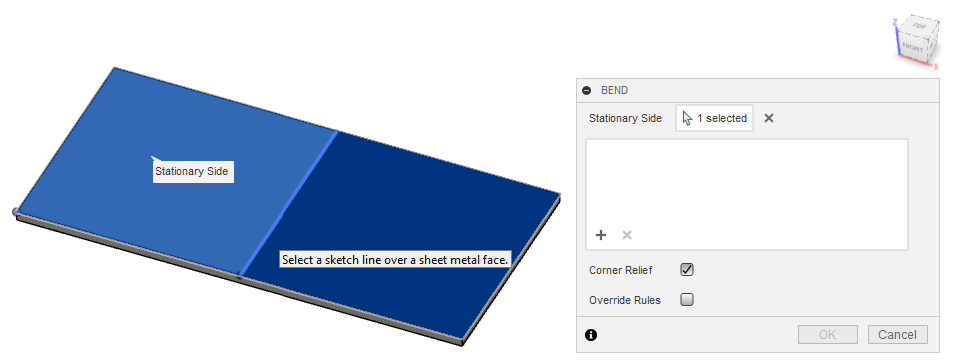

Open the Bend tool again and select the stationary side and any bend lines you want to apply bends to.

Select the stationary side and any bend lines.

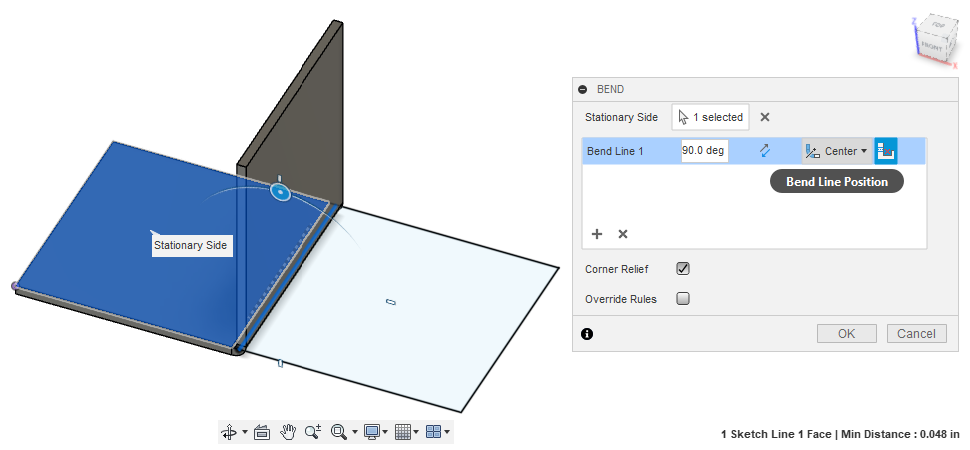

Set the Bend Line Position to Center.

In the Bend tool settings, set the Bend Line Position to Center.

When your bends are all set, click OK. You can hide your Sketch again if desired.

When your Bend tool settings are ready, click OK. Hide your sketch if desired.

5. Measure your 3D part

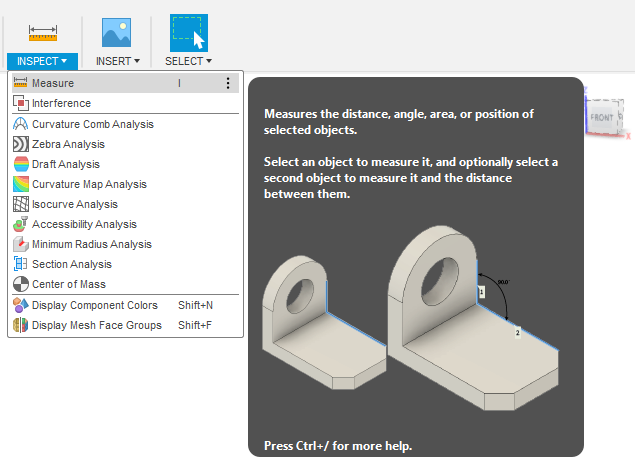

Measure the 3D part to see what the formed dimensions will be using the Measure tool.

Here you can see that the sheet metal rule has been applied to the flat pattern drawn, so the bent part’s height will be 1.55”.

Measure your bent 3D part to see what the dimensions will be after bending.

Export a 2D DXF file

When all bends have been added and your design is ready, export a 2D DXF by following the steps in our guide here: How To Export a DXF from Fusion 360 – SendCutSend

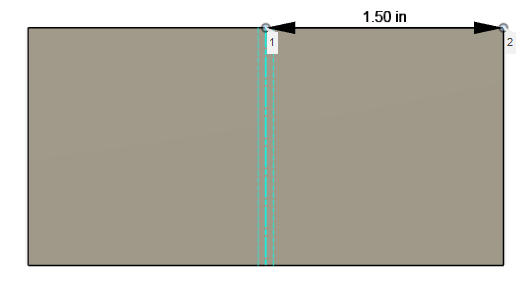

The flat pattern you export will be consistent with your original sketch.

You can measure the flat pattern that Fusion will export to see that it is consistent with your original sketch's dimensions.

And that’s it! If you use the Bend tool correctly, this will result in accurate parts.

For more Fusion 360 tips, explore our Fusion tutorials

In Summary

How to create bends with the Bend tool in Fusion 360?

1. Draw your sketch including bend lines using the correct flat pattern dimensions.
2. Convert to sheet metal and apply a sheet metal rule using the Flange tool.
3. Use the Bend tool to add bends where your bend lines are. The Bend tool will apply the sheet metal rule to the 3D part.
