What materials do you offer?

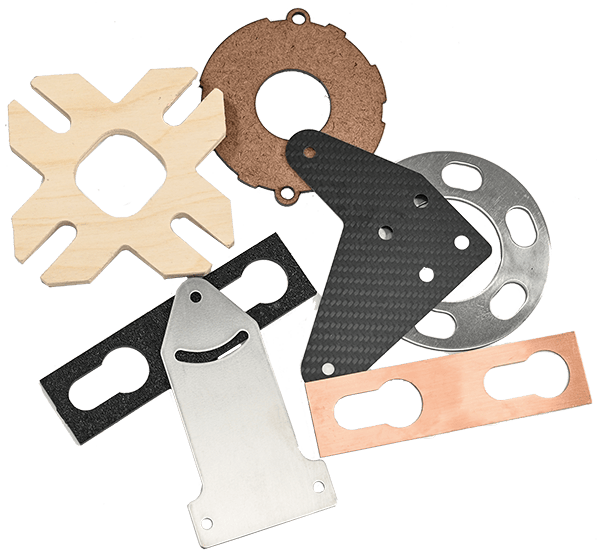

You can find all materials offered in our Material Catalog! There, you’ll find the individual pages which include specifications, properties, common uses, example images, and more. We have a selection of sheet metal, composites, plastics, and wood/boards. You can also see material availability when you upload files to our website for an instant quote.

We only cut flat sheet stock and provide full-depth 2D cutting perpendicular to the top or bottom surface only. At this time we only cut from the options listed in our catalog. If you’d like something we don’t currently offer, feel free to submit to our Material Suggestion Form!

To quickly reference all stock thicknesses, part size constraints, and cut methods, see our Material Minimum and Maximum Sizes page. The cut method (laser, waterjet, or CNC router) is set for each stock thickness and cannot be changed.

To reference all material thickness part size constraints for all post processing services including bending, tapping, countersinking, hardware insertion, deburring, tumbling, anodizing, plating, and powder coating, see our Processing Minimum and Maximum Sizes page.

Materials
Sheet metals, composites, plastics, and wood/boards we offer.

Start your first SendCutSend project today!

Upload your CAD design or use our parts builder and get instant pricing on your custom laser cut parts, all delivered to your door in a matter of days.

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild, G30

SKUSO-440-8
Thread Size4-40 x .250″
Hole size in sheet (+0.003/-.0.000).168″
Minimum sheet thickness0.040″
Maximum sheet thickness.125″
Fastener materialSteel
Minimum distance hole C/L to edge or bend.250″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..345″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.250″
Aluminum material ranges (5052, 6061, 7075)0.040″-0.125″
Steel material ranges (CRS, HRPO, HR)0.048″-0.119″

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Passivated

Stainless Steel: 304, 316

SKUSO4-440-8
Thread Size440
Hole size in sheet (+0.003/-.0.000).166″
Minimum sheet thickness0.04″
Maximum sheet thickness.125″
Fastener material400 Stainless Steel
Minimum distance hole C/L to edge or bend.250″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware..313″
Recommended panel materialStainless Steel
Coating typePassivated
Length.250″
304 Stainless Steel material ranges0.048″-0.125″
316 Stainless Steel material ranges0.060″-0.125″
