Laser-cut 6061 T6 Aluminum

Starting from $29

Our 6061 aluminum is T6 series and it’s the backbone of your next aerospace project. That’s not a figure of speech, either. With a host of critical structural properties and astounding economical value, you won’t find a material that can do more for your work.

Coupled with SendCutSend’s proven quality and efficiency, your savings will be more than just dollars. But, honestly, we like saving you dollars.

Lightweight
Rust Free
STRONG

The lowdown on our 6061 aluminum

Precipitation hardened for added strength, our 6061 aluminum is commonly found in structural applications where toughness and corrosion resistance are of high importance. That’s pretty typical for aluminum alloys in general, but what makes this 6061 series stand out is its heat-treatability. The heat-treating process further strengthens the alloy without robbing it of key properties.

For example, many of our aluminum variants are able to withstand tremendous amounts of vibration (also known as fatigue strength) making them perfectly suited for transportation applications. 6061 has great workability and weldability, though it’s inferior to 5052 in this area, it compensates by being much stronger. As compared to 7075, 6061 has greater workability and weldability, but lesser strength.

Simply put, our 6061 aluminum is an insanely versatile mid-range alloy and can be applied to many of your projects in construction, transportation, engineering, and electronics, among others.

Need something custom? Send us an email at support@sendcutsend.com

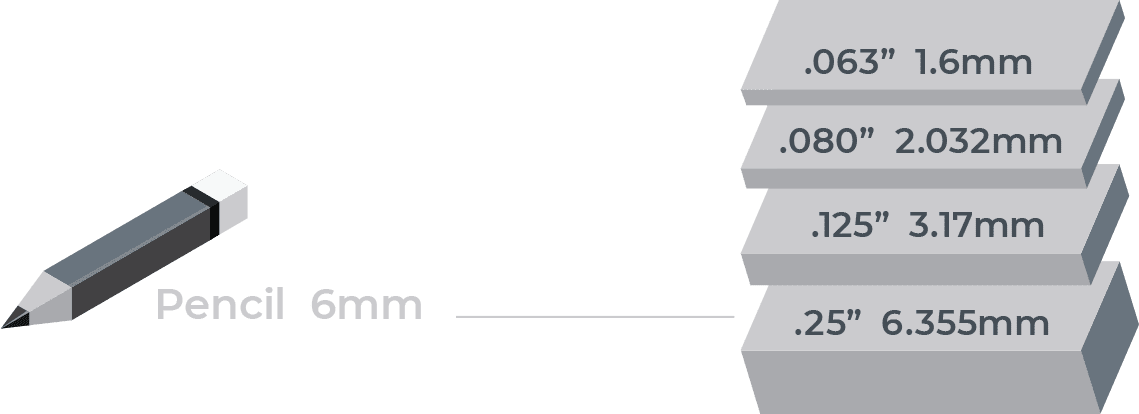

Available Thicknesses

In Typical Thickness Deviation Gauge Mm Process
.040″ +/- .005″   1.0 Laser
.063″ +/- .005″ 14 1.5 Laser
.080″ +/- .005″   2.0 Laser
.125″ +/- .005″ 8 3.1 Laser
.187″ +/- .010″   4.8 Laser
.25″ +/- .015″   6.3 Laser
.375″ +/- .015″   9.6 Laser
.500″ +/- .015″   12.3 Laser

Common Uses

  • Construction angles
  • Plates
  • Automotive frames
  • Aerospace structural
  • Heat sinks
  • Electronics

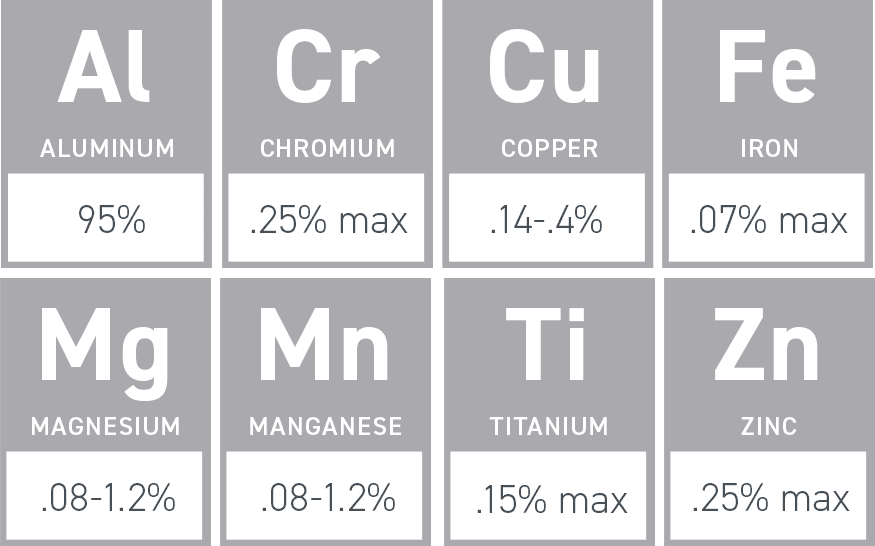

5052 Aluminum elements

FAQs

Does it bend?
Yes

Can you tap it?
Yes, on thicknesses greater than .063″

Can this be deburred?
Yes

How big can I make a part in this?
47” x 60”

Will it rust?
No, and it is highly corrosion resistant

Minimum Hole Size

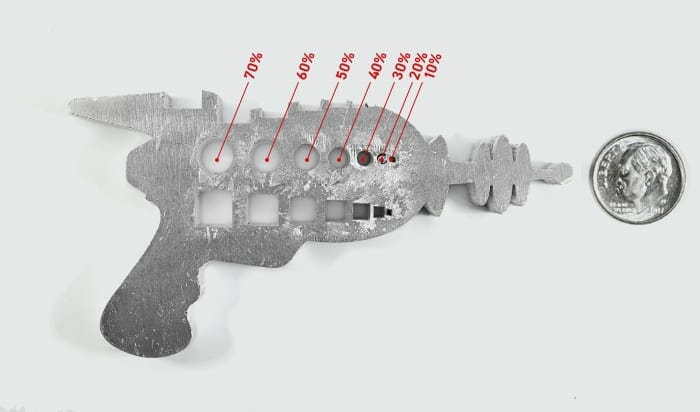

To ensure the best quality for your parts, we recommend no less than 50% material thickness for all holes. See the images below for more detail. The largest hole is 70% material thickness. Each hole decresases in size by 10%.

.500″ 6061 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

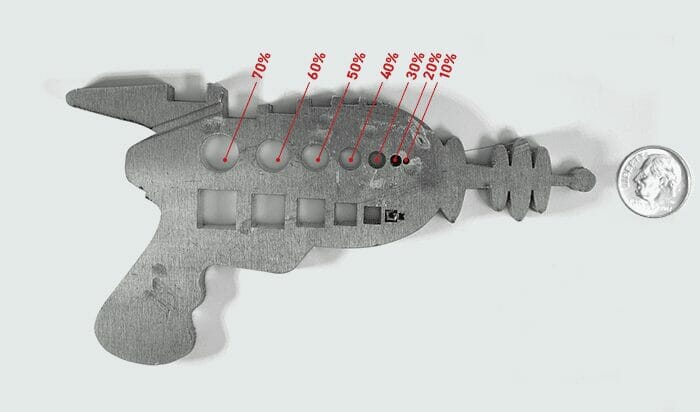

.500" primary face

.500" primary face

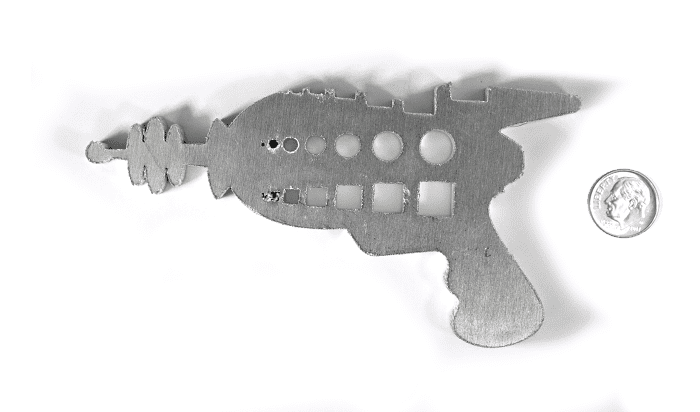

.500" back side

.500" back side

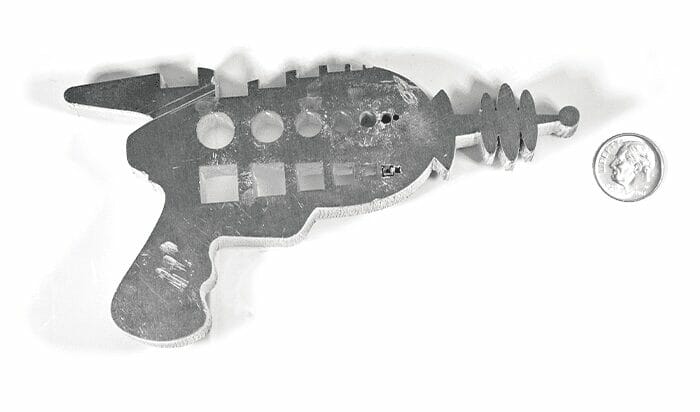

.500" front, angle

.500" front, angle

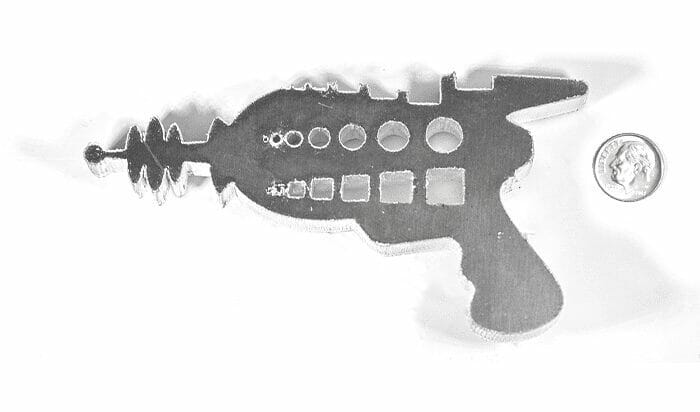

.500" back, angle

.500" back, angle

.375″ 6061 Aluminum



Hole diameters are based on material thickness.
50% diameter = 50% material thickness

.375" primary face

.375" primary face

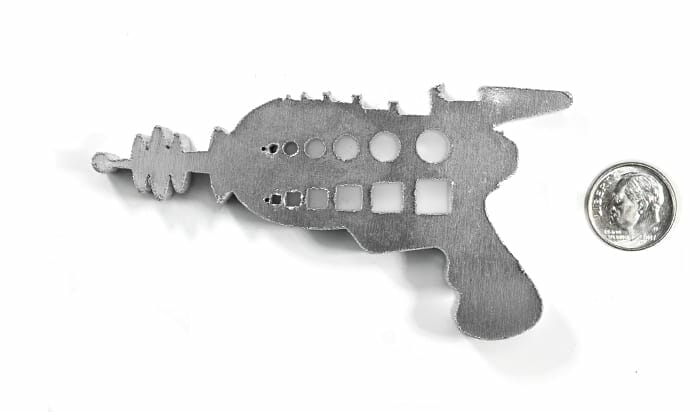

.375" back side

.375" back side

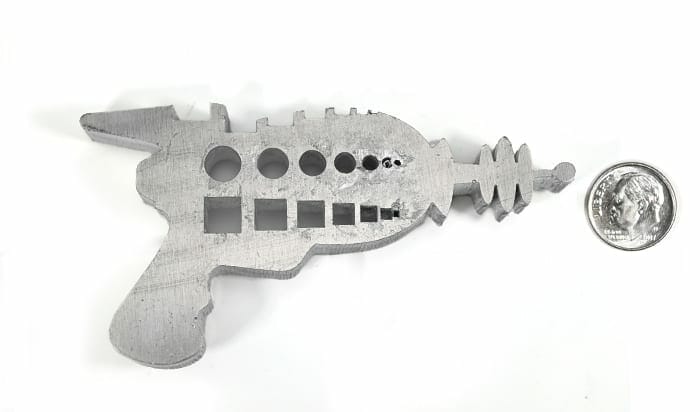

.375" front, angle

.375" front, angle

.250″ 6061 Aluminum



Hole diameters are based on material thickness.
50% diameter = 50% material thickness

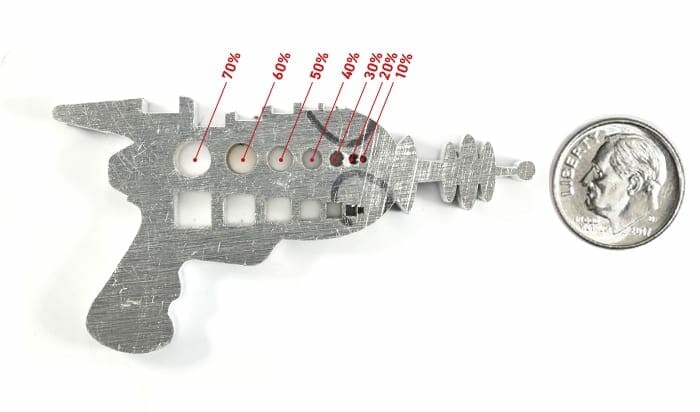

.250" primary face

.250" primary face

.250" back side

.250" back side

.250" front, angle

.250" front, angle

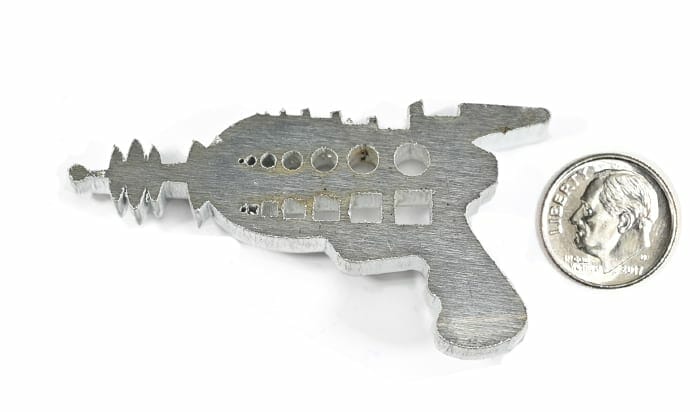

.250" back, angle

.250" back, angle

.187″ 5052 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

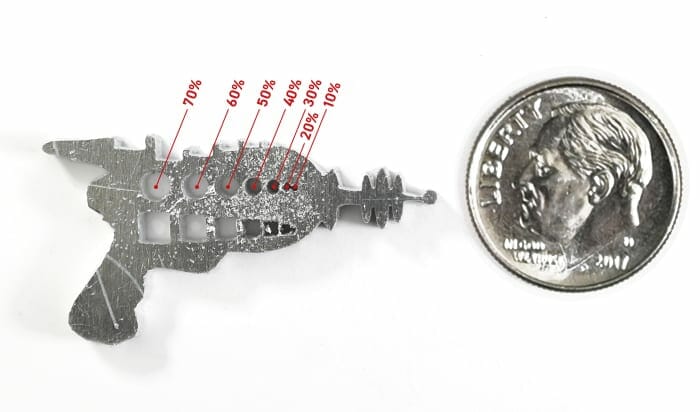

.120" primary face

.120" primary face

.120" back side

.120" back side

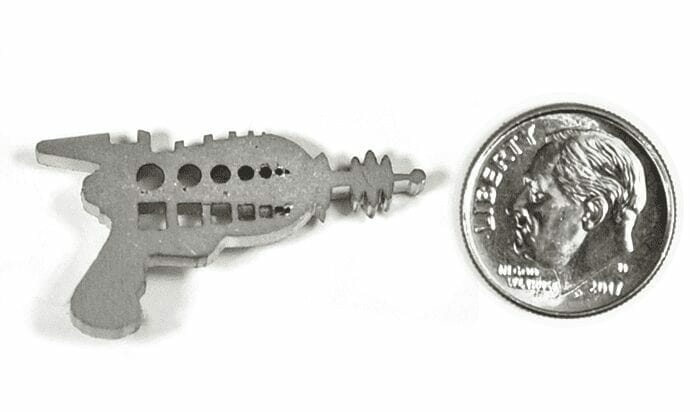

.120" front, angle

.120" front, angle

.120" back, angle

.120" back, angle

.120″ 6061 Aluminum

Hole diameters are based on material thickness.
50% diameter = 50% material thickness

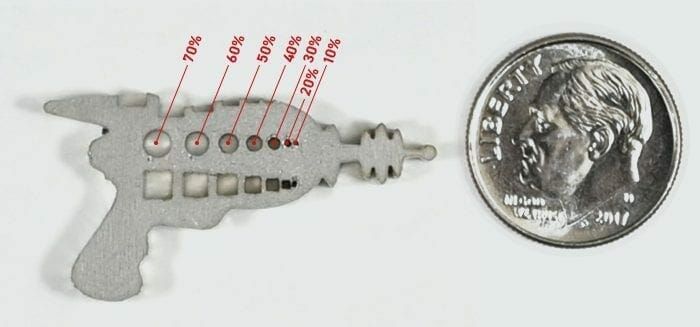

.120" primary face

.120" primary face

.120" back side

.120" back side

Material Quality

We use the highest quality raw materials available, sourced from trusted vendors. Material certifications (PDF) are available below.

6061 Aluminum .063″
6061 Aluminum .080″
6061 Aluminum .125″
6061 Aluminum .190″
6061 Aluminum .250″
6061 Aluminum .375″
