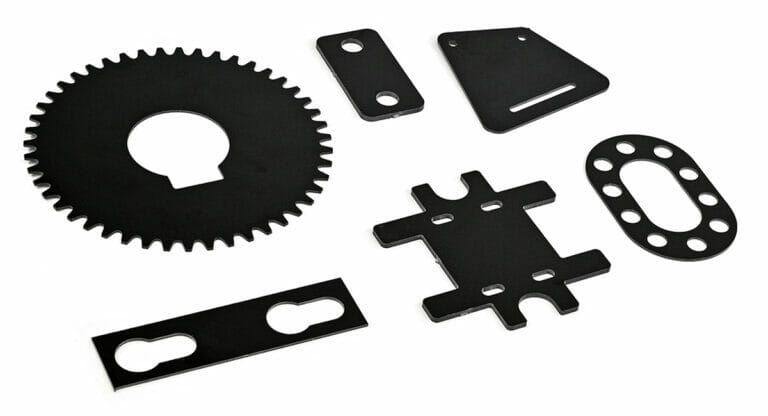

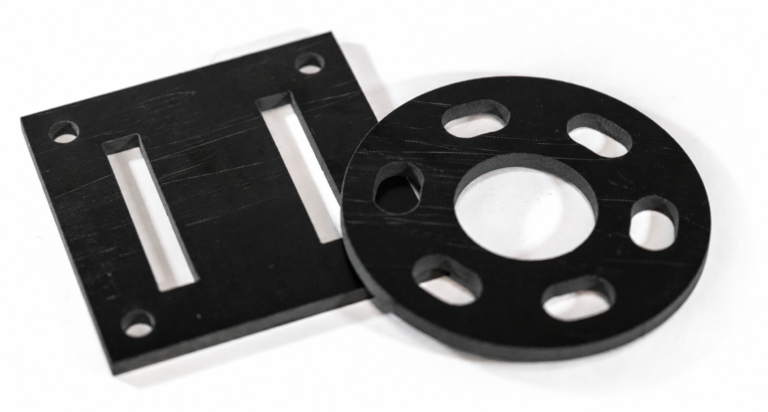

Strong enough to meet your needs with a host of specialized electrical properties, low water absorption, and fire retardancy, G-10 FR-4 grade is the go-to material for your electronic parts, robotics endeavors, and marine applications.
Our G-10 is made up of a mixture of epoxy resin and glass cloth, so you know it’s got strength under pressure. With superior electrical insulation properties, when both wet and dry, it’s the most widely used insulator for electrical applications in the industry. It boasts incredibly high mechanical strength and rigidity and has excellent dimensional stability over a wide temperature range, along with low water absorption rates.
Honestly, G-10 FR-4 is used most often in laminate circuit boards, but it does have a great many uses including insulating washers and transformer components. You’ll also find it used in firearm and knife grips due to its ability to take texture and color well. Any time you’re interacting with consumer electronics, you can assume that you’re in the vicinity of G-10 somewhere.
If you need something to get wet and be lightweight while doing it, G-10 is the material for you. Often used in marine applications for housings and electronic components, this versatile composite is able to withstand harsh marine environments. Some spearfishermen even use it as the primary material for their spear guns due to its lightweight nature and low water absorption.
Machining G-10 FR-4 parts can be challenging for some, but that’s why you come to SendCutSend with your designs, you can trust us to handle the heavy lifting for you and let you focus on the big picture.
Details | |
---|---|
Advertised Thickness | .063″ | 1.6mm |
Gauge | N/A |
Thickness Tolerance Positive | .008″ |
Thickness Tolerance Negative | .008″ |
Cutting Process | Waterjet |
Cut Tolerance | .009″ |
Top/Bottom Finish | Identical both sides |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Design Considerations | |
Min Part Size | 1″ x 2″ |
Max Part Size | 46″ x 30″ |
Min Hole Size | .070″ |
Min Bridge Size | .063″ |
Min Hole to Edge Size | .020″ |
Tab and Slot Tolerance | .015″ |
Properties | |
Material Composition | G10 is a thermoset resin formed by the polymerization of phenol and formaldehyde, which can then be impregnated with glass cloth material to form an industrial laminate. |
Density | 112.32 lb/ft^3 |
Tensile Strength (Yield) | Lengthwise: 45 ksi Crosswise: 38ksi |
Shear Strength | Lengthwise: 75 ksi Crosswise: 65 ksi |
Comprehensive Strength | 65 ksi |
Flexural Modulus | Lengthwise: 2.7 ksi Crosswise: 2.4 ksi |
Isod Impact (Notched), ft-lb/in | Lengthwise: 13 ksi Crosswise: 14 ksi, 12 ksi |
Rockwell Hardness | M110 |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | 2 BTU-in/hr-ft^2 °F |
Flammability Ratings | VO |
Magnetic | No |
Details | |
---|---|
Advertised Thickness | .125″ | 3.18mm |
Gauge | N/A |
Thickness Tolerance Positive | .012″ |
Thickness Tolerance Negative | .012″ |
Cutting Process | Waterjet |
Cut Tolerance | .009″ |
Top/Bottom Finish | Identical both sides |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Design Considerations | |
Min Part Size | 1″ x 2″ |
Max Part Size | 46″ x 30″ |
Min Hole Size | .070″ |
Min Bridge Size | .125″ |
Min Hole to Edge Size | .038″ |
Tab and Slot Tolerance | .020″ |
Properties | |
Material Composition | G10 is a thermoset resin formed by the polymerization of phenol and formaldehyde, which can then be impregnated with glass cloth material to form an industrial laminate. |
Density | 112.32 lb/ft^3 |
Tensile Strength (Yield) | Lengthwise: 45 ksi Crosswise: 38ksi |
Shear Strength | Lengthwise: 75 ksi Crosswise: 65 ksi |
Comprehensive Strength | 65 ksi |
Flexural Modulus | Lengthwise: 2.7 ksi Crosswise: 2.4 ksi |
Isod Impact (Notched), ft-lb/in | Lengthwise: 13 ksi Crosswise: 14 ksi, 12 ksi |
Rockwell Hardness | M110 |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | 2 BTU-in/hr-ft^2 °F |
Flammability Ratings | VO |
Magnetic | No |
Details | |
---|---|
Advertised Thickness | .250″ | 6.35mm |
Gauge | N/A |
Thickness Tolerance Positive | .022″ |
Thickness Tolerance Negative | .022″ |
Cutting Process | Waterjet |
Cut Tolerance | .009″ |
Top/Bottom Finish | Identical both sides |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Design Considerations | |
Min Part Size | 1″ x 2″ |
Max Part Size | 46″ x 30″ |
Min Hole Size | .070″ |
Min Bridge Size | .250″ |
Min Hole to Edge Size | .075″ |
Tab and Slot Tolerance | .030″ |
Properties | |
Material Composition | G10 is a thermoset resin formed by the polymerization of phenol and formaldehyde, which can then be impregnated with glass cloth material to form an industrial laminate. |
Density | 112.32 lb/ft^3 |
Tensile Strength (Yield) | Lengthwise: 45 ksi Crosswise: 38ksi |
Shear Strength | Lengthwise: 75 ksi Crosswise: 65 ksi |
Comprehensive Strength | 65 ksi |
Flexural Modulus | Lengthwise: 2.7 ksi Crosswise: 2.4 ksi |
Isod Impact (Notched), ft-lb/in | Lengthwise: 13 ksi Crosswise: 14 ksi, 12 ksi |
Rockwell Hardness | M110 |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | 2 BTU-in/hr-ft^2 °F |
Flammability Ratings | VO |
Magnetic | No |
Details | |
---|---|
Advertised Thickness | .375″ | 9.53mm |
Gauge | N/A |
Thickness Tolerance Positive | .046″ |
Thickness Tolerance Negative | .046″ |
Cutting Process | Waterjet |
Cut Tolerance | .009″ |
Top/Bottom Finish | Identical both sides |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Design Considerations | |
Min Part Size | 1″ x 2″ |
Max Part Size | 46″ x 30″ |
Min Hole Size | .070″ |
Min Bridge Size | .375″ |
Min Hole to Edge Size | .113″ |
Tab and Slot Tolerance | .050″ |
Properties | |
Material Composition | G10 is a thermoset resin formed by the polymerization of phenol and formaldehyde, which can then be impregnated with glass cloth material to form an industrial laminate. |
Density | 112.32 lb/ft^3 |
Tensile Strength (Yield) | Lengthwise: 45 ksi Crosswise: 38ksi |
Shear Strength | Lengthwise: 75 ksi Crosswise: 65 ksi |
Comprehensive Strength | 65 ksi |
Flexural Modulus | Lengthwise: 2.7 ksi Crosswise: 2.4 ksi |
Isod Impact (Notched), ft-lb/in | Lengthwise: 13 ksi Crosswise: 14 ksi, 12 ksi |
Rockwell Hardness | M110 |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | 2 BTU-in/hr-ft^2 °F |
Flammability Ratings | VO |
Magnetic | No |

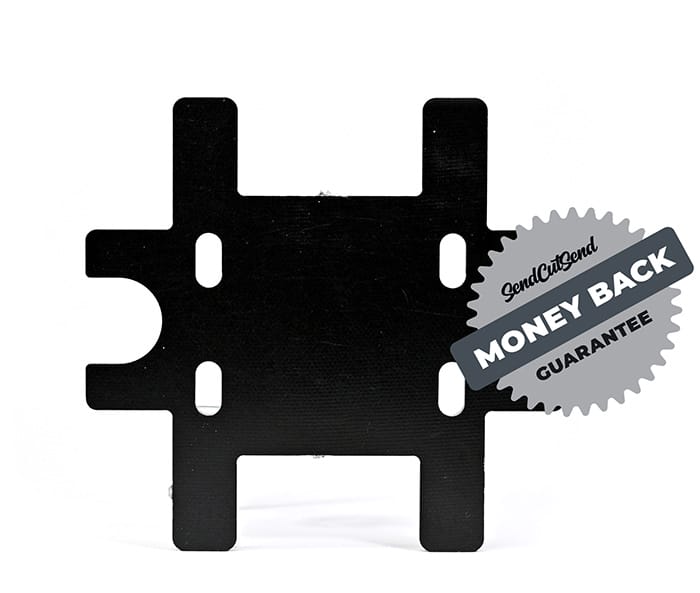

We guarantee awesome quality parts. If you’re not 100% happy, we’ll give you a refund or remake on the spot – no questions, no hassle.
These tabs hold your parts in place while being cut to ensure the best accuracy possible. Click below to learn what to expect and how to best design with these tabs in mind.
We proudly use hardware by PEM
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.94″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .535″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .314″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
