Our baltic birch plywood is inexpensive, stable, holds screws exceptionally well, and is made with waterproof glue so you can use it in a wide variety of projects. Superior to MDF in external applications and only slightly better in interior ones, birch plywood can provide you with more options than other composites.
Baltic Birch plywood is a type of plywood known for its exceptional strength, durability, and versatility. It is made from multiple layers of thin birch veneers that are cross-bonded, resulting in a sturdy and stable panel with a smooth, uniform surface.
We stock grade B/BB Birch plywood for CNC machining, which is the second-highest grade available. You might be thinking, “why not the highest grade?” Here’s why: The highest grade and the second-highest grade are extremely close in applicable usages, but by stepping down a grade, we pass tons of savings onto you with essentially no loss in quality.

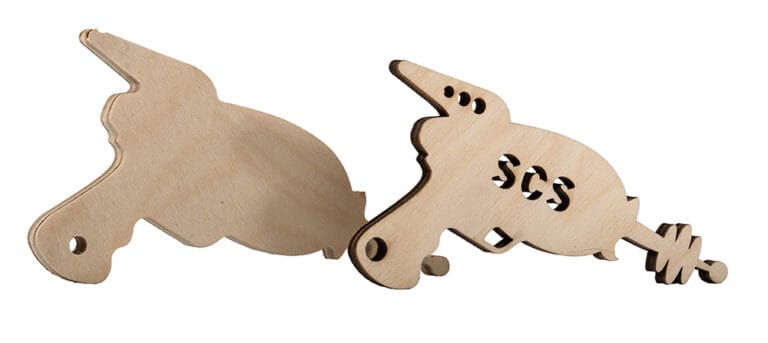

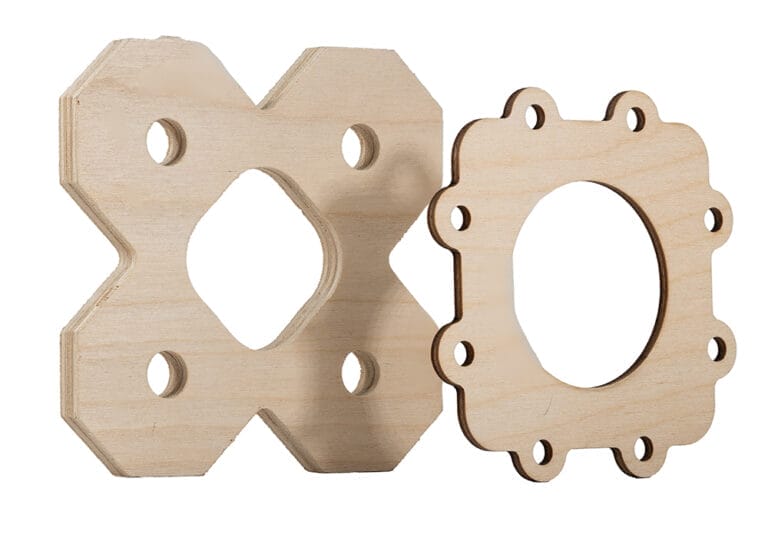

You’ll find that our custom laser cut/CNC cut birch plywood is beautiful to look at, carrying a bright, clean finish as well as a uniform grain. Multiple layers of birch veneer make it sturdy enough to give your project strength while also being lower cost than typical hardwoods and softwoods.
If you need strength and stability on a budget for your work, this is the material for you.
Details | |
---|---|
Advertised Thickness | .354″ | 9.0mm |
Gauge | N/A |
Thickness Tolerance Positive | .016″ |
Thickness Tolerance Negative | .024″ |
Cutting Process | CNC Router |
Cut Tolerance | .005″ |
Top/Bottom Finish | Identical both sides |
Sourced from | Global |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Tumbling | No |
Design Considerations | |
Max Part Size | 44″ x 30″ |
Min Hole Size (CNC Bit Size) | .125″ |
Min Bridge Size | .354″ |
Min Hole to Edge Size | .106″ |
Tab and Slot Tolerance | .025″
|
Properties | |
Material Composition | |
Density | |
Tensile Strength (Yield) | |
Shear Strength | |
Shear Modulus | |
Fatigue Strength | |
Brinell Hardness | |
Elongation at Break | |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | |
Melting Point | |
Magnetic | No |
Details | |
---|---|
Advertised Thickness | .472″ | 12.0mm |
Gauge | N/A |
Thickness Tolerance Positive | .020″ |
Thickness Tolerance Negative | .027″ |
Cutting Process | CNC Router |
Cut Tolerance | .005″ |
Top/Bottom Finish | Identical both sides |
Sourced from | Global |
Available Operations | |
Deburring | No |
Bending | No |
Countersinking | No |
Tapping | No |
Anodizing | No |
Plating | No |
Powder Coating | No |
Hardware | No |
Tumbling | No |
Design Considerations | |
Max Part Size | 44″ x 30″ |
Min Hole Size (CNC Bit Size) | .125″ |
Min Bridge Size | .472″ |
Min Hole to Edge Size | .142″ |
Tab and Slot Tolerance | .025″
|
Properties | |
Material Composition | |
Density | |
Tensile Strength (Yield) | |
Shear Strength | |
Shear Modulus | |
Fatigue Strength | |
Brinell Hardness | |
Elongation at Break | |
Elastic Modulus | |
Poisson’s Ratio | |
Thermal Conductivity | |
Melting Point | |
Magnetic | No |

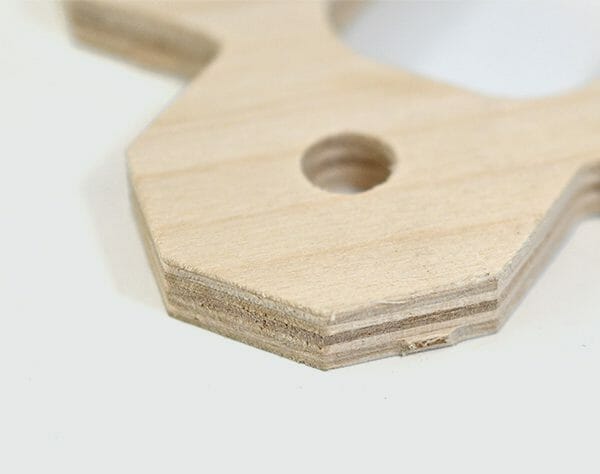

These tabs hold your parts in place while being cut to ensure the best accuracy possible. Click below to learn what to expect and how to best design with these tabs in mind.
No CAD File? No Problem! Send your sketch or template to our Design Services team.
We proudly use hardware by PEM
SKU | FH-M8-12 |
Thread Size | M8 x 1.25 |
Hole size in sheet (+0.003/-.0.000) | .315″ |
Minimum sheet thickness | 0.94″ |
Maximum sheet thickness | .347″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.378″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .535″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .472″ |
Aluminum material ranges (5052, 6061, 7075) | 0.100″-0.250″ |
Steel material ranges (CRS, HRPO, HR) | 0.104″-0.250″ |
We proudly use hardware by PEM
SKU | SO-440-8 |
Thread Size | 4-40 x .250″ |
Hole size in sheet (+0.003/-.0.000) | .168″ |
Minimum sheet thickness | 0.040″ |
Maximum sheet thickness | .125″ |
Fastener material | Steel |
Minimum distance hole C/L to edge | 0.230″ |
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. | .314″ |
Recommended panel material | Steel/Aluminum |
Coating type | Zinc |
Length | .250″ |
Aluminum material ranges (5052, 6061, 7075) | 0.040″-0.125″ |
Steel material ranges (CRS, HRPO, HR) | 0.048″-0.119″ |
