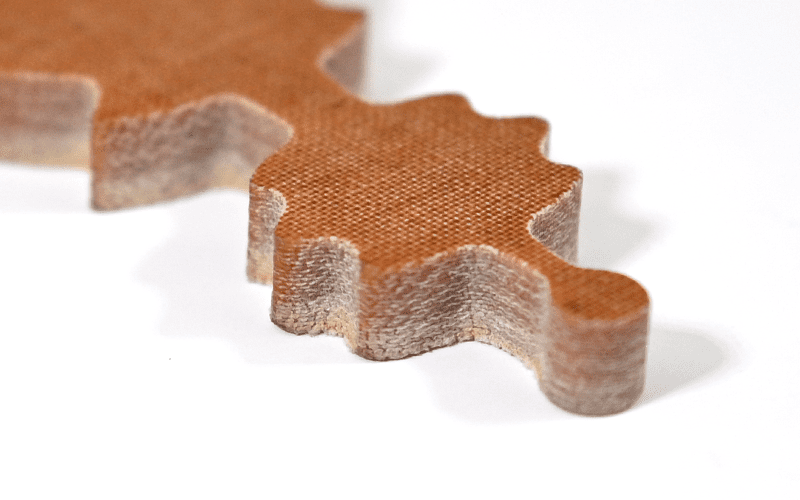

LE Phenolic Linen (Micarta)

Need some parts made with major insulating capabilities? Or maybe you need something that fits the electrical specs of your project but also needs to be machinable for your more complex designs? LE Phenolic Linen parts made through SendCutSend can help make sure that your ideas function as intended.

  • Available thicknesses are .125″, .250″, and .375″
  • Waterjet cut composite (+/- .009″ cutting tolerance)
  • 2-4 day lead time before shipping
  • Globally sourced

Starting from $29

MACHINABLE
IMPACT RESISTANT
Moisture Resistant

What is LE Phenolic Linen?

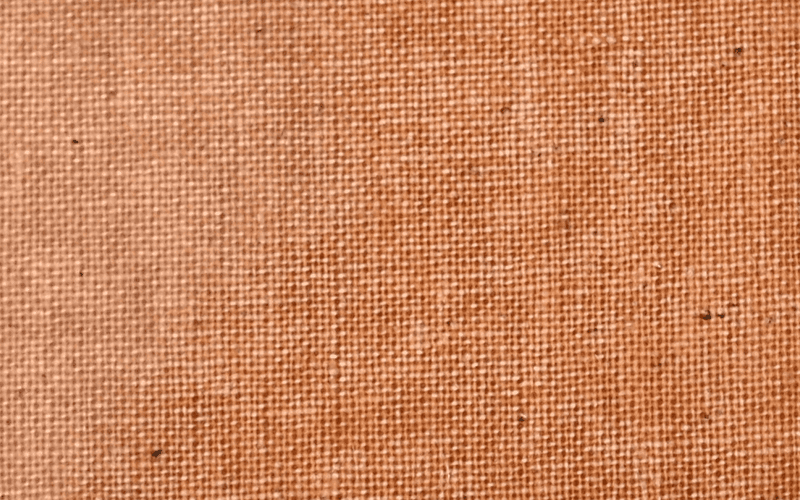

Our LE Linen Phenolic (also known as Micarta) is a high-density mixture of phenolic resin and fine weave cotton cloth fabric. Linen grade phenolic material is more machinable than other grades and can retain finer details than similar materials. It has the best electrical properties of cotton-grade industrial laminates due to its superior moisture resistance.

What can you make with LE Phenolic?

With outstanding dimensional stability and remarkable creep resistance, this material can be used in many of the same applications as aluminum at half the weight. This resin-saturated fabric lends your projects physical toughness, abrasion, friction, and impact resistances, and even greater fatigue strength.

In addition, the lifetime of LE Phenolic linen is exceptional, and low cost, when factoring in its natural chemical and corrosion resistance. You’ll find that phenolic linen is well-suited to extremely humid environments where strength is still as important as corrosion resistance.

Get started with a free instant quote!

Material Details

.040″ LE Phenolic Linen (Micarta)

Details
Advertised Thickness .125″ | 3.18mm
Gauge N/A
Thickness Tolerance Positive .006″
Thickness Tolerance Negative .006″
Cutting Process Waterjet
Cut Tolerance .009″
Top/Bottom Finish Identical both sides
Sourced from Global
Available Operations
Deburring No
Bending No
Countersinking No
Tapping No
Anodizing No
Plating No
Powder Coating No
Hardware No
Tumbling No
Design Considerations
Min Part Size 1″ x 2″
Max Part Size 44″ x 30″
Min Hole Size .125″
Min Bridge Size .125″
Min Hole to Edge Size .038″
Tab and Slot Tolerance .010″
Properties
Density 84 lb/ft^3
Tensile Strength (Ultimate) 11 ksi
Comprehensive (Crushing) Strength 31 ksi
Shear Strength 12 ksi
Flexural Modulus 930 ksi
Flexural Strength 15 ksi
Impact Strength – Notched Izod 1.1 ft-lb/in
Rockwell Hardness 110
Elastic Modulus
Poisson’s Ratio
Thermal Conductivity
Maximum Temperature – Mechanical 250 °F
Magnetic No
Does it Rust? No

Our CNC cut LE Phenolic Linen is guaranteed

We guarantee awesome quality parts. If you’re not 100% happy, we’ll give you a refund or remake on the spot – no questions, no hassle.

What to expect with your Phenolic parts

Visual variances will be present between parts.

Start your first SendCutSend project today!

Upload your CAD design or use our parts builder and get a free instant quote on your custom laser cut parts, all delivered to your door in a matter of days.
No CAD File? No Problem! Send your sketch or template to our Design Services team. Starting at $49.

We proudly use hardware by PEM

Flush stud, M8 x 1.25, .472" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild

SKUFH-M8-12
Thread SizeM8 x 1.25
Hole size in sheet (+0.003/-.0.000).315″
Minimum sheet thickness0.94″
Maximum sheet thickness.347″
Fastener materialSteel
Minimum distance hole C/L to edge0.378″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..567″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.472″
Aluminum material ranges (5052, 6061, 7075)0.100″-0.250″
Steel material ranges (CRS, HRPO, HR)0.104″-0.250″

Get an Instant Quote for Waterjet Cutting

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild, G30

SKUSO-440-8
Thread Size4-40 x .250″
Hole size in sheet (+0.003/-.0.000).168″
Minimum sheet thickness0.040″
Maximum sheet thickness.125″
Fastener materialSteel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..345″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.250″
Aluminum material ranges (5052, 6061, 7075)0.040″-0.125″
Steel material ranges (CRS, HRPO, HR)0.048″-0.119″

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Passivated

Stainless Steel: 304, 316

SKUSO4-440-8
Thread Size440
Hole size in sheet (+0.003/-.0.000).166″
Minimum sheet thickness0.04″
Maximum sheet thickness.125″
Fastener material400 Stainless Steel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware..345″
Recommended panel materialStainless Steel
Coating typePassivated
Length.250″
304 Stainless Steel material ranges0.048″-0.125″
316 Stainless Steel material ranges0.060″-0.125″
