Series 304 stainless steel is one of the most common and durable grades of stainless steel
304 stainless is our favorite metal for just about any project including industrial robotics, decorative applications and food service machinery.

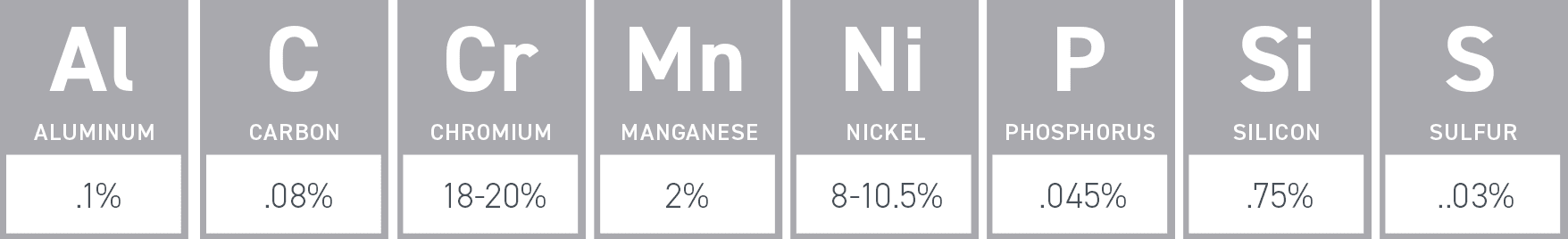

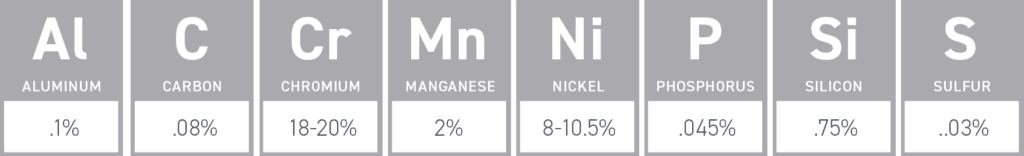

Possessing excellent mechanical properties, high amounts of nickel and chromium in 304 stainless steel provide outstanding corrosion resistance. Additionally, 304 stainless steel is easily weldable and formable.
STRONG & DURABLE
WelDs Beautifully
NON-MAGNETIC
Available Thicknesses
| Inches | Deviation | Gauge | Millimeters |
|---|---|---|---|
| .029″ | +/- .002″ | 22 | .8 |
| .048″ | +/- .003″ | 18 | 1.2 |
| .059″ | +/- .003″ | 16 | 1.5 |
| .120″ | +/- .005″ | 11 | 3.0 |
| .187″ | +/- .009″ | 4.5 | |
| .250″ | +/- .015″ | 6.2 | |
| .375″ | +/- .020″ | 9.6 | |
| .500″ | +/- .020″ | 12.8 |

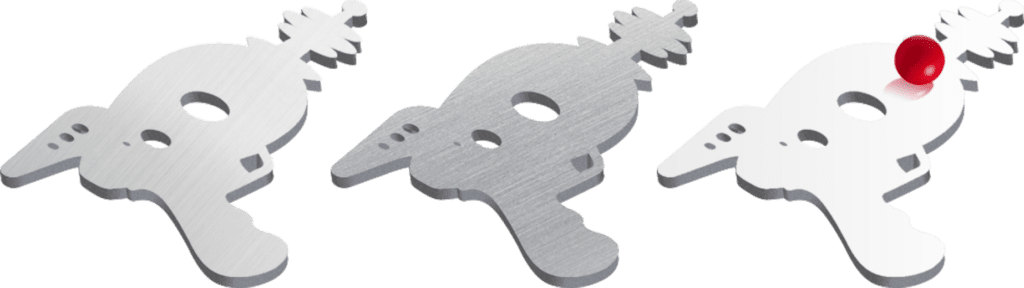

Clean Cut
Our stainless is laser cut using high-purity nitrogen to give you a clean edge. Using nitrogen as an assist gas prevents oxides from forming during the cutting process, so your parts are ready to paint, powder coat or weld without any additional processing such as grinding or sanding.
PLEASE NOTE
Laser-cut materials may have a small amount of dross (burr) on the underside of your part(s). This is a normal occurrence from the cutting process. Due to manufacturing variables, your parts may also have small cosmetic imperfections/scratches.
Series 304 stainless steel is one of the most common and durable grades of stainless steel
304 stainless is our favorite metal for just about any project including industrial robotics, decorative applications and food service machinery.
Possessing excellent mechanical properties, high amounts of nickel and chromium in 304 stainless steel provide outstanding corrosion resistance. Additionally, 304 stainless steel is easily weldable and formable.
Minimum Hole Size
To ensure the best quality for your parts, we recommend no less than 50% material thickness for all holes. See the images below for more detail. The largest hole is 70% material thickness. Each hole decresases in size by 10%.

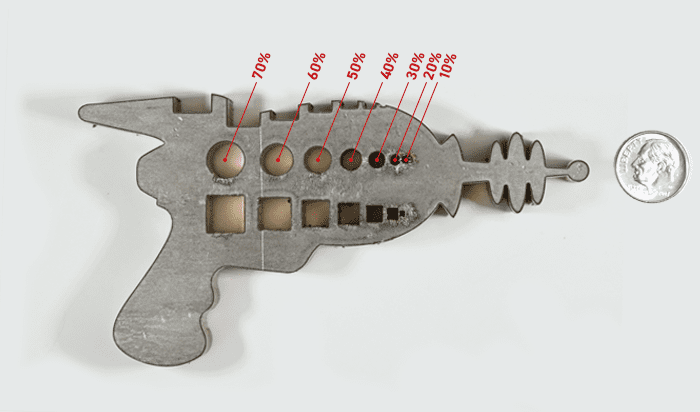

.500″ Stainless Steel
Hole diameters are based on material thickness.
50% diameter = 50% material thickness
.500" primary face

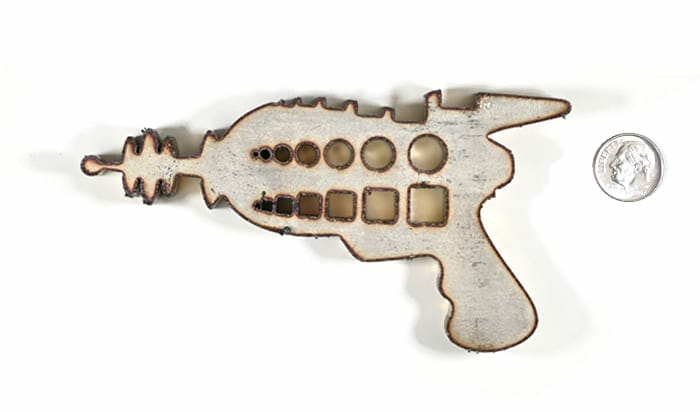

.500" back side

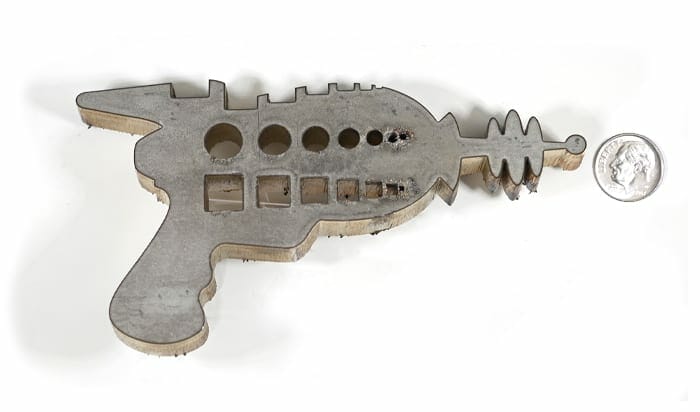

.500" front, angle

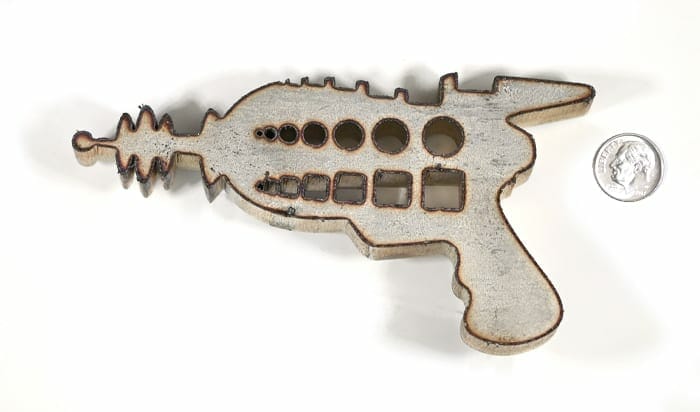

.500" back, angle
.375″ Stainless Steel
Hole diameters are based on material thickness.
50% diameter = 50% material thickness

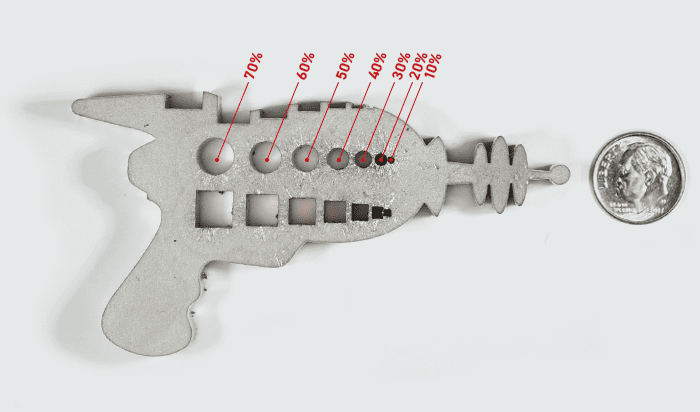

.375" primary face

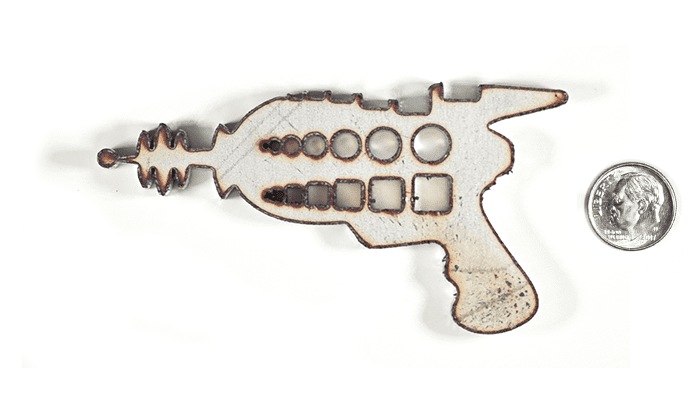

.375" back side

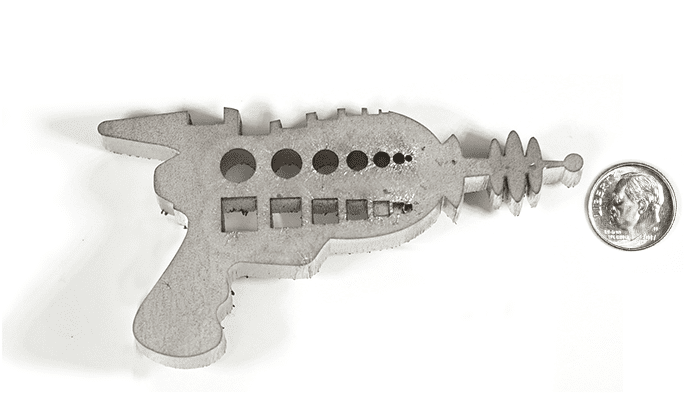

.375" front, angle

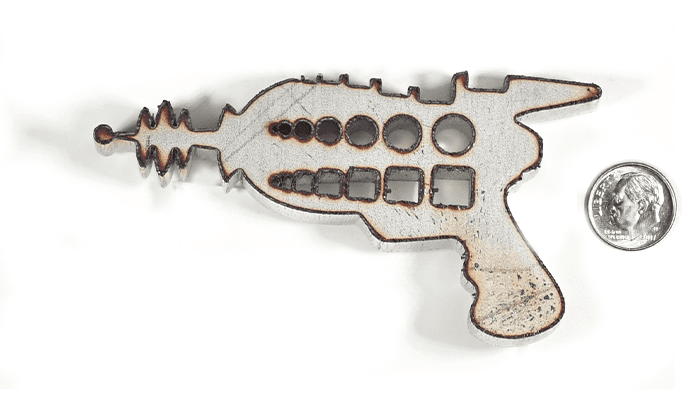

.375" back, angle

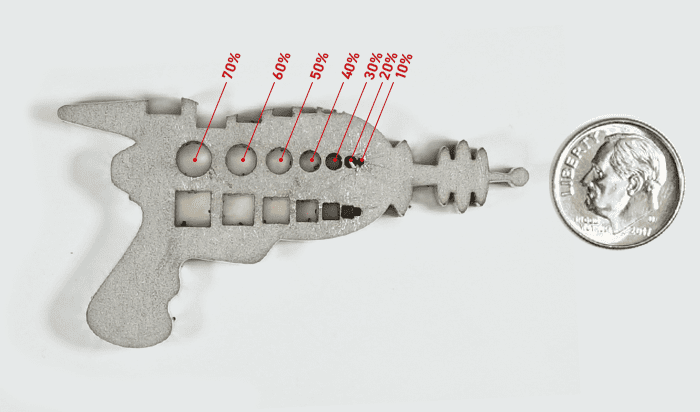

.250″ Stainless Steel
Hole diameters are based on material thickness.
50% diameter = 50% material thickness
.250" primary face

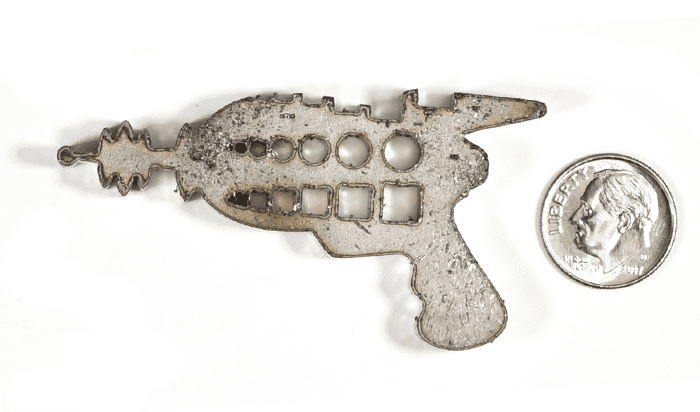

.250" back side

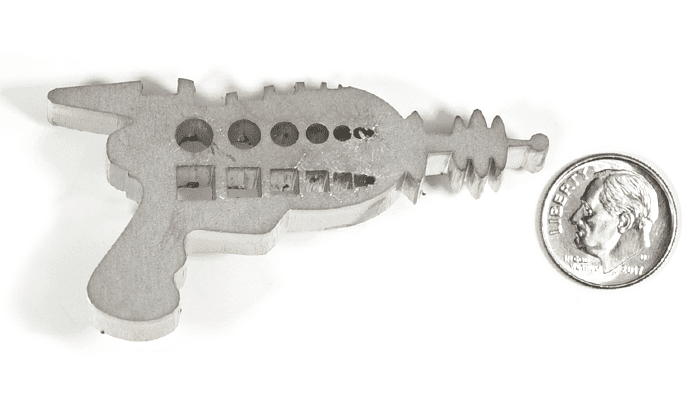

.250" front, angle

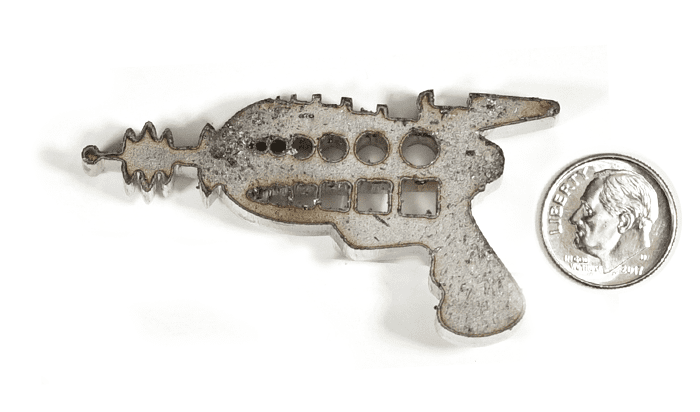

.250" back, angle
.187″ Stainless Steel
Hole diameters are based on material thickness.
50% diameter = 50% material thickness
.120" primary face
.120" back side
.120" front, angle
.120" back, angle

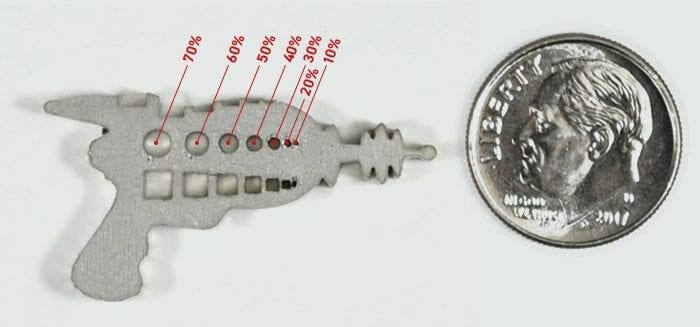

.120″ Stainless Steel
Hole diameters are based on material thickness.
50% diameter = 50% material thickness
.120" primary face

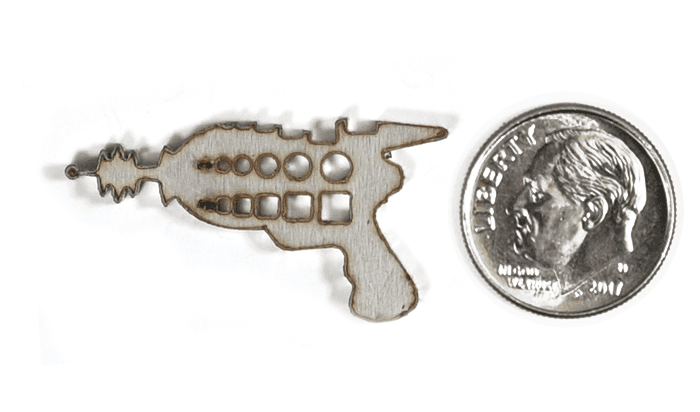

.120" back side

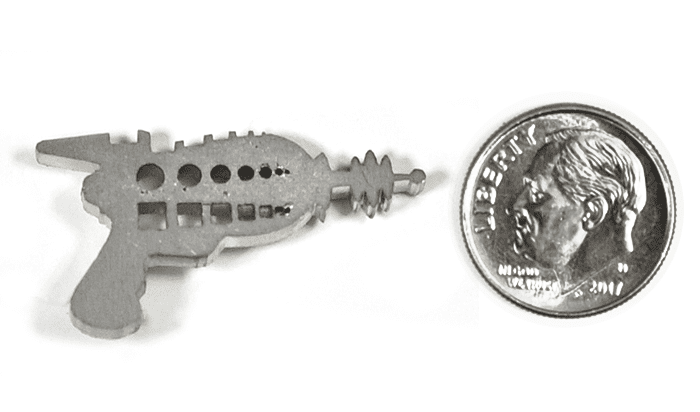

.120" front, angle

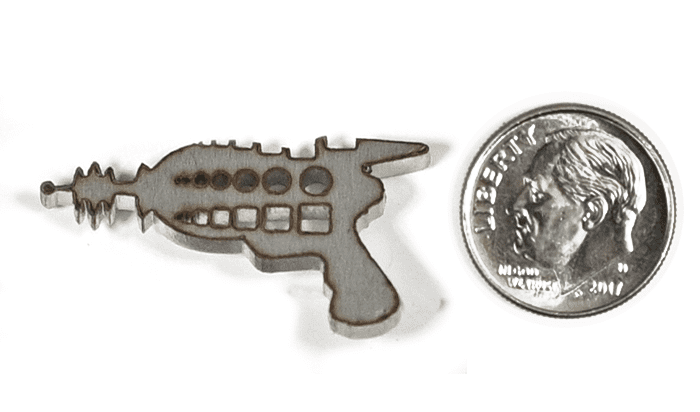

.120" back, angle
Material Quality
We use the highest quality raw materials available, sourced from trusted vendors. Material certifications (PDF) are available below.
Stainless Steel .030″
Stainless Steel .048″
Stainless Steel .060″
Stainless Steel .074″
Stainless Steel .100″
Stainless Steel .375″
Start your first project today!
Upload your DXF, DWG, EPS, or AI file, pick a material, get a price.
Don’t have a file? Try our Parts Builder!
