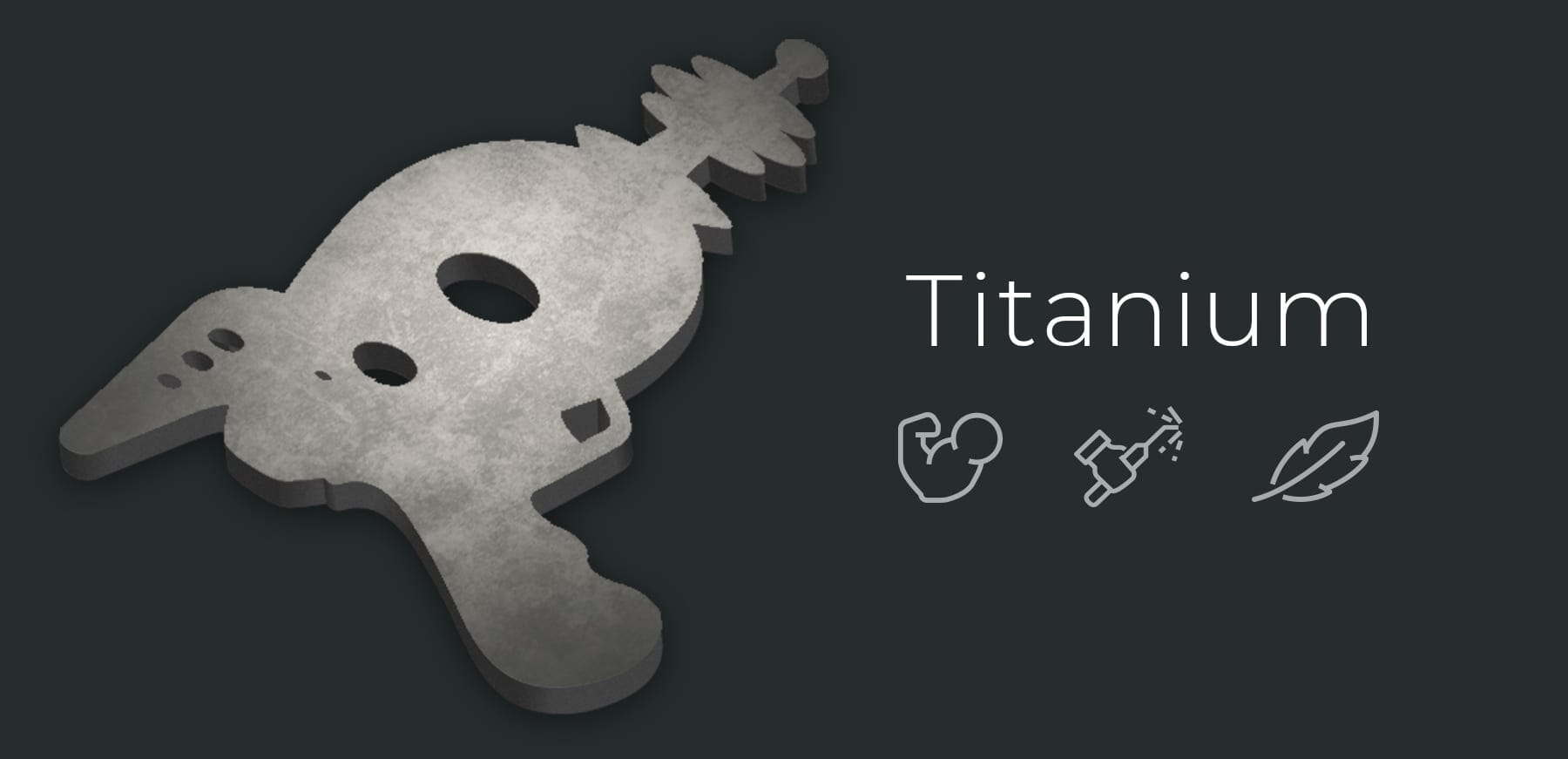

Custom laser cut titanium from SendCutSend

Laser Cut Grade 5 Titanium

Stronger than pure titanium, titanium Grade 5 is alloyed with aluminum, vanadium, and iron to create a durable, lightweight metal. It’s designed to withstand even the harshest of environments, from temperatures exceeding 800°F to corrosive seawater. Titanium Grade 5 is built for your highest-risk projects.

Starting from $29

Custom laser cut titanium from SendCutSend
custom laser cut grade 5 titanium parts from SendCutSend

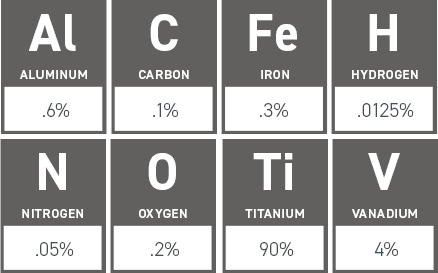

What is Grade 5 Titanium?

Our titanium is non-magnetic, non-toxic, and non-allergenic, which has led to its increasing use in the medical field. Despite being as strong as steel, titanium is about 40 percent lighter, which, along with its resistance to erosion, makes it an essential structural metal for aerospace engineers.

Titanium is also formidable in its resistance to corrosion by both water and most chemicals. This resistance is achieved by forming a thin layer of titanium dioxide on its surface that is extremely difficult for these materials to penetrate. Ensuring that when you use it in your next project, corrosion will be the last thing on your mind.

Strength

Corrosion Resistance

Weldability

Toughness

Formability

Machinability

Heat Treating

Strength-to-Weight Ratio

A high-melting point metal

One of titanium’s most useful properties is its high melting point, which is about 400°F above the melting point of steel, and approximately 2000°F above that of aluminum. So it’s a good fit for working in an array of high-temperature situations.

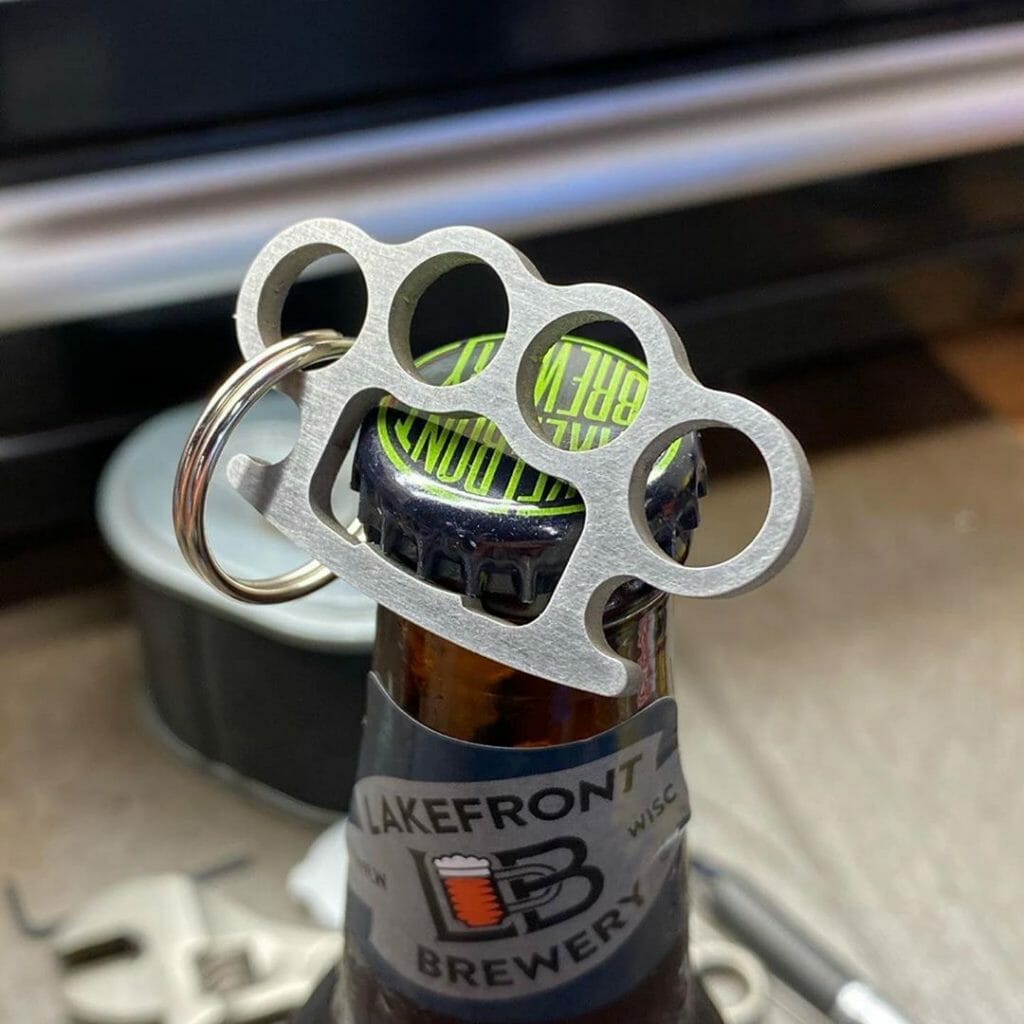

What can you make with Grade 5 Titanium?

The strength of titanium is twice that of low-carbon “mild” steel, and about 3x the strength of aluminum (assuming similar thicknesses). That’s why it’s our strongest metal in-house and why our aerospace engineers turn to it for their more advanced projects.

Couple that with SendCutSend’s proprietary fabrication methods and you’ve got one of the strongest metals in the known universe in your corner, for less.

Grade 5 titanium is he strongest metal SendCutSend carries

Services available for Grade 5 Titanium

Deburring

This FREE process removes small imperfections, scratches, and burr left over from the cutting process.

Tumbling

Reduce the surface blemishes and handling scratches found in raw materials.

Get started with a free instant quote using our parts builder!

Get started with a free instant quote!

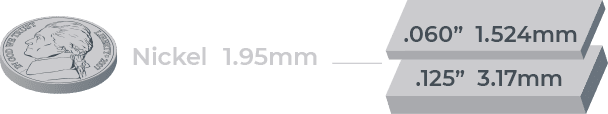

Material Details

.040" Grade 5 Titanium

Material Details & Specifications

.060" Grade 5 Titanium

Material Details & Specifications

.125" Grade 5 Titanium

Material Details & Specifications

.187" Grade 5 Titanium

Material Details & Specifications

.250" Grade 5 Titanium

Material Details & Specifications

1.02mm Grade 5 Titanium

Material Details & Specifications

1.52mm Grade 5 Titanium

Material Details & Specifications

3.18mm Grade 5 Titanium

Material Details & Specifications

4.75mm Grade 5 Titanium

Material Details & Specifications

6.35mm Grade 5 Titanium

Material Details & Specifications

Our laser cut Grade 5 Titanium is guaranteed

We guarantee awesome quality parts. If you’re not 100% happy, we’ll give you a refund or remake on the spot – no questions, no hassle.

SendCutSend offers a money-back guarantee when you order custom laser cut titanium parts

Start your first SendCutSend project today!

Upload your CAD design or use our parts builder and get a free instant quote on your custom laser cut parts, all delivered to your door in a matter of days.
No CAD File? No Problem! Send your sketch or template to our Design Services team. Starting at $49.

We proudly use hardware by PEM

Flush stud, M8 x 1.25, .472" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild

SKUFH-M8-12
Thread SizeM8 x 1.25
Hole size in sheet (+0.003/-.0.000).315″
Minimum sheet thickness0.94″
Maximum sheet thickness.347″
Fastener materialSteel
Minimum distance hole C/L to edge0.378″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..567″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.472″
Aluminum material ranges (5052, 6061, 7075)0.100″-0.250″
Steel material ranges (CRS, HRPO, HR)0.104″-0.250″

Get an Instant Quote for Waterjet Cutting

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Zinc plus Clear Chromate

Aluminum: 5052, 6061, 7075 Steel: Mild, G30

SKUSO-440-8
Thread Size4-40 x .250″
Hole size in sheet (+0.003/-.0.000).168″
Minimum sheet thickness0.040″
Maximum sheet thickness.125″
Fastener materialSteel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole..345″
Recommended panel materialSteel/Aluminum
Coating typeZinc
Length.250″
Aluminum material ranges (5052, 6061, 7075)0.040″-0.125″
Steel material ranges (CRS, HRPO, HR)0.048″-0.119″

We proudly use hardware by PEM

Flush Standoff, 4-40, .250" Passivated

Stainless Steel: 304, 316

SKUSO4-440-8
Thread Size440
Hole size in sheet (+0.003/-.0.000).166″
Minimum sheet thickness0.04″
Maximum sheet thickness.125″
Fastener material400 Stainless Steel
Minimum distance hole C/L to edge0.230″
When determining the distance between two or more fasteners, you can calculate the distance by the formula, C/L to edge + 1/2 the diameter of the second mounting hole. Example shown with x2 of the same hardware..345″
Recommended panel materialStainless Steel
Coating typePassivated
Length.250″
304 Stainless Steel material ranges0.048″-0.125″
316 Stainless Steel material ranges0.060″-0.125″
