Laser Cut Nitrile (Buna) Rubber

Nitrile Buna N rubber: Reliable oil resistant gasket material for seals, pads, and industrial components

Nitrile Buna N is one of the most widely used rubber materials for gaskets, seals, pads, and protective components because of its excellent resistance to oils, fuels, grease, and many industrial chemicals. It is durable, flexible, and performs reliably under compression, making it a trusted option in automotive, industrial, mechanical, and manufacturing environments. At SendCutSend, we laser cut .063 inch and .125 inch Buna N rubber to ±.009 inch tolerance, delivering clean, accurate profiles for sealing rings, pads, isolators, and custom gasket shapes.

What are the key things to know about Nitrile Buna N?

• Excellent resistance to oils, fuels, and solvents • Flexible and durable with good compression sealing • Performs well in industrial and mechanical environments • Cuts cleanly into detailed gasket and pad shapes • Suitable for medium temperature applications

Why do fabricators choose Nitrile Buna N for gaskets and seals?

Buna N rubber is chosen because it provides consistent sealing performance in applications where oils, fuels, greases, and industrial fluids are present. It compresses easily during installation, rebounds well under bolt load, and maintains its sealing properties over time. Fabricators often select Buna N because:

• It is one of the best general purpose oil resistant rubbers available. • It handles a wide range of petroleum-based fluids. • It works well in both static and low pressure dynamic seals. • It has good tear resistance for long term use. • It cuts into tight geometries and holds shape under compression.

It is commonly found in equipment housings, hydraulics, automotive systems, machinery, pumps, and fluid handling components.

What is Nitrile Buna N commonly used for and why is it so popular?

Buna N is used because it strikes an ideal balance of durability, flexibility, chemical resistance, and cost. Typical applications include: • Automotive and small engine gaskets • Oil and fuel handling systems • Industrial machinery seals • Pumps and valve gaskets • Protective pads and bumpers • Flexible spacers and vibration insulators • HVAC and compressor components • General purpose mechanical sealing It is especially popular in industries that frequently handle oils, solvents, or petroleum products because nitrile rubber remains stable and maintains its sealing pressure even after extended exposure.

How well does Nitrile Buna N laser cut?

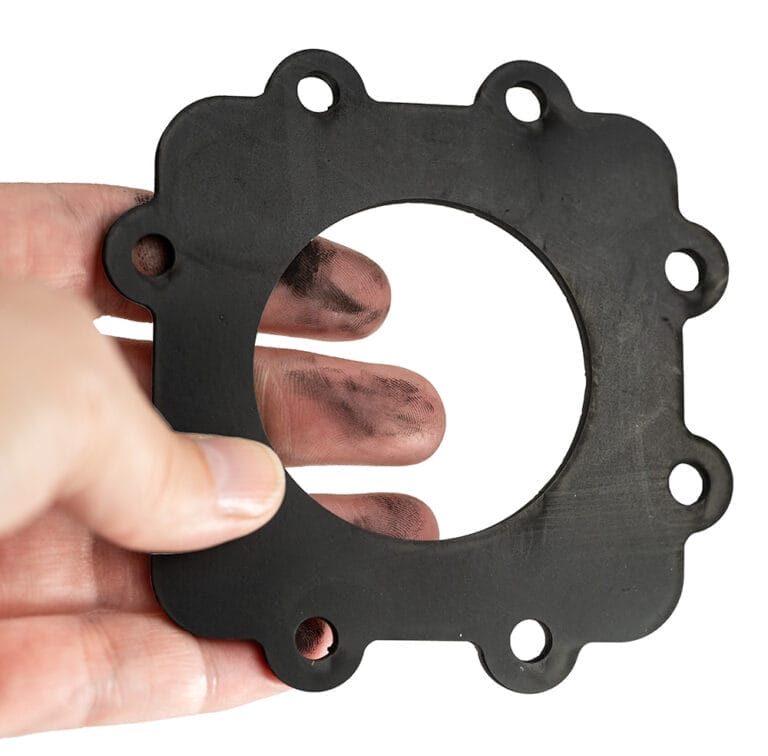

Buna N rubber laser cuts cleanly and consistently, especially at the sheet thicknesses offered by SendCutSend. What to expect from laser cutting Buna N: • Smooth, clean edges • Minimal charring • Accurate interior holes and bolt patterns • Good performance on narrow walls and ring gaskets • Clean separation without frayed edges • Slight surface darkening near the cut, which is normal for rubber Laser cutting produces much more precise gasket geometry than manual cutting, die cutting, or drag knives. .063 inch Buna N cuts especially well for fine detail. .125 inch cuts cleanly but may show slightly darker edges due to energy absorption.

What are the advantages of using Nitrile Buna N?

Excellent oil and fuel resistance

Nitrile is known for handling: • Motor oils • Gear oils • Fuels • Greases • Coolants • Hydraulic fluids This chemical compatibility is the main reason Buna N is widely used in automotive and industrial environments.

Good compression sealing

Buna N compresses smoothly and rebounds when clamped, forming reliable gaskets for flanges and housings.

Strong tear and abrasion resistance

It holds up well to mechanical stress and repeated movement, making it suitable for pads, isolators, and vibration control.

Temperature versatility

Most Buna N materials perform well in temperatures from approximately -20 F to 212 F, depending on formulation.

Easy to install and long lasting

Gaskets made from nitrile are easy to handle, flexible enough for manual installation, and maintain their performance over long use cycles.

What are the limitations or drawbacks of Nitrile Buna N?

Not suitable for high heat

Buna N should not be used in high-temperature environments where silicone or Viton would be required.

Poor ozone and UV resistance

Outdoor exposure, ozone, and sunlight degrade Buna N over time. For outdoor rubber, consider: • EPDM rubber • Neoprene rubber • Silicone rubber

Not recommended for strong acids or ketones

While Buna N handles oils well, certain chemicals will degrade it. If chemical resistance is the top priority, PTFE or silicone gaskets may be better choices.

Limited elasticity compared to softer rubbers

Buna N is firm and stable but not as stretchy or compressible as silicone or natural rubber.

Only available in thin gauges

At .063 inch and .125 inch, Buna N is ideal for gaskets but not thick pads or spacers.

How should I design parts for Nitrile Buna N?

Designing gaskets and pads from Buna N is straightforward, but following certain guidelines ensures strong performance.

Recommended practices:

• Keep minimum wall widths above .060 inch for .063 inch material • Keep minimum wall widths above .090 inch for .125 inch material • Avoid extremely sharp internal corners, use fillets to reduce stress • Ensure bolt holes are sized correctly, since rubber can deform slightly • Plan for moderate compression during installation • Do not oversize bolt holes, but avoid press fits that stretch the rubber • Use smooth curves and avoid very tight inside radii

Check out  SendCutSend Design Guidelines for more tips on setting up your file for cutting with SendCutSend.

How does Nitrile Buna N perform in sealing applications?

Buna N performs very well in applications where the gasket must: • Withstand oil and petroleum products • Maintain compression load • Resist deformation over time • Provide reliable sealing at moderate temperatures • Seal irregular surfaces when clamped Its ability to form a uniform, pressure-resistant seal is why it is used so widely in pumps, motors, engines, compressors, and fluid handling systems. Buna N also performs better than cork or fiber gasket materials when oils and fuels are present.

Where is Nitrile Buna N most commonly used?

Nitrile Buna N appears in industrial, automotive, and mechanical systems where exposure to oils and fuels is expected. Common use cases include:

• Valve cover gaskets • Pump and fluid handling equipment • Air and gas compression systems • Oil seals and fuel line gaskets • Machinery access panels • Industrial housings and enclosures • Shock absorbing pads • Washers and vibration isolators

It is a dependable choice for many general purpose gaskets in equipment that must hold fluids securely.

When should I use Nitrile Buna N for my project?

Choose Nitrile Buna N when your project requires a durable, oil resistant, flexible gasket material that maintains sealing performance under compression and handles common industrial fluids. Buna N is the right choice if your part needs: • Strong resistance to oils, fuels, and solvents • Clean, precise laser cut geometry • Good compression set and sealing behavior • Reliable performance in mechanical assemblies • Flexibility for installation and handling • Durability under vibration or repeated contact Buna N is not ideal for: • Long term outdoor exposure • Very high temperature environments • Applications requiring extreme elasticity SendCutSend laser cuts Buna N gaskets in .063 inch and .125 inch thicknesses with ±.009 inch tolerance, delivering production ready sealing components in 2 to 4 days.
